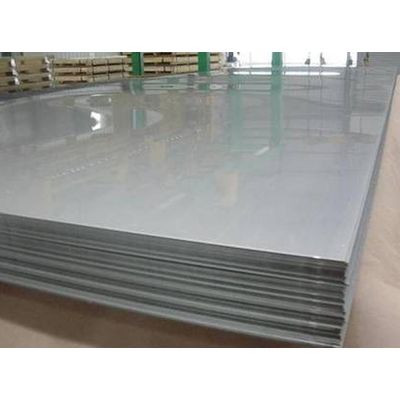

Aluminium Alloy 5052 Sheets and Plates
ASTM/ASME B209/SB209 Aluminium Alloy 5052 Sheets and Plates is one of the higher strength non-heat-treatable alloys. It has a high fatigue strength and excellent corrosion resistance, particularly in marine atmospheres. The formability of the grade is excellent and in the annealed condition it offers higher strengths than 1100 or 3003 grades. One of the most popular alloys. ASTM/ASME B209/SB209 Aluminium Alloy 5052 Sheets and Plates is a non-heat-treatable 2½% magnesium, 0.25% chromium alloy commonly available in flat rolled coil, sheet and plate from a wide range of producing mills. Like all the 5000-series high magnesium alloys 5052 has a fairly high strength and is hardenable to a significant degree by cold working, enabling a series of “H” tempers. Alloy 5052 is also produced as a treadplate (also known as chequer plate) with mainly industrial applications.
Excellent in a wide range of atmospheric environments, in food and architectural applications and it is also acceptable in many marine environments. The magnesium content is low enough that it does not suffer from the stress corrosion cracking that can affect alloys with more than about 3½% Mg, such as 5083
- Corrosion resistant
- Accurate dimensions
- Can sustain high pressure & temperature load
- Rust proof finish
- Smooth transition from flange thickness to pipe
- Ensure excellent stress distribution
- Usefull in Paper & Pulp Companies
- Usefull in High Pressure Applications
- Usefull in Oil and Gas Industry
- Usefull in Chemical Refinery
- Usefull in Pipeline
- Usefull in High Temperature Application
- Usefull in Water Pipe Line
- Usefull in Nuclear Power Plants
- Usefull in Food Processing and Dairy Industries
- Usefull in Boiler & Heat Exchangers
Standard: ASTM/ASME B209/SB209
Width: 1000mm-3000mm
Thickness: 0.5mm – 250mm
Production: Hot-Rolled (HR) / Cold-Rolled (CR)
