PREFA Aluminiumprodukte GmbH
PREFA - Aluminium Composite Panel
The aluminium composite panel consists of two aluminium sheets which are fusion-bonded to both sides of a polyethylene core. Through the equal measure of chemical bonding and mechanical fastening, this combination is particularly robust. In this way, the aluminium composite panel ensures consistent evenness and stability, even on large-scale surfaces.
Most popular related searches

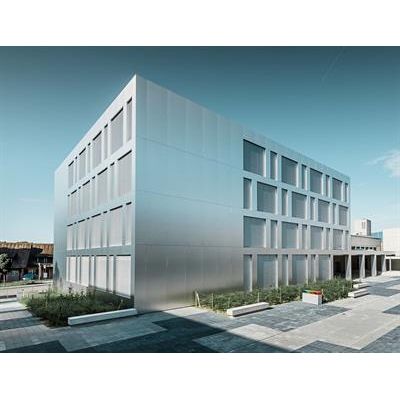

- Ventilated façade constructions
- Façade cladding
- Cladding of balconies
- Door panels, modular partition walls, room dividers
- COATING ON FRONT: DURAGLOSS 5000 is an exclusive Arconic paint with a recently developed coating made of high-quality polymer resin, and is available in four colours. The gloss level is between 3 and 80%.
- CORE: FR core (fire retardant)
- COATING ON REVERSE: Protective paint, suitable for adhesion, offers excellent corrosion protection. The coating direction is indicated by arrows on the back. This enables you to correctly align the tiles on the façade.
- STANDARD DIMENSIONS: thickness: 4 mm; width: 1,500 mm; length: 4,010 mm
- usable dimension: 4,000 × 1,490 mm
- DIMENSIONS AVAILABLE ON REQUEST (FROM 500 M²): thickness: 4 mm; width: 1,000/1,250/1,500/1,750/2,000 mm; length: between 2,000 and 6,000 mm
- WEIGHT OF THE ALUMINIUM COMPOSITE PANEL (FR): 4 mm = 7.5 kg/m²
- Which is 3.4 times lighter than steel and 1.6 times lighter than pure aluminium.
- FIRE PROTECTION RATING (ALUMINIUM COMPOSITE PANELS FR): Austria (EN 13501) – B-s1-d0
- Germany (DIN) – B1
- Switzerland (VKF) – 5.3
- TEMPERATURE RESISTANCE: between –50 °C and +80 °C
- LINEAR THERMAL EXPANSION: A = 0.024 mm/m/°C (based on the aluminium cover plate)
- CHANGE IN LENGTH AT A TEMPERATURE DIFFERENCE OF 60 °C:
- 1.4 mm per metre
