PREFA - Aluminium Facade Sidings

SHARE

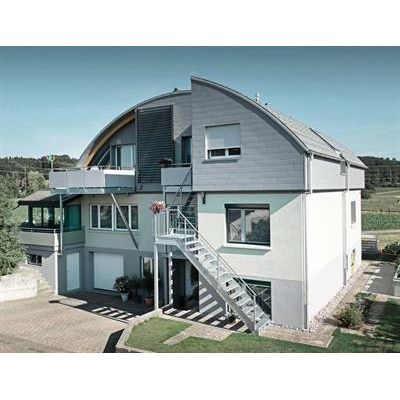

PREFA aluminium façade sidings are façade elements from the ventilated façade range. PREFA sidings are used in a variety of ways, both indoors and out, as wall and ceiling coverings. Their concealed fastening (via a tongue and groove system) guarantees an attractive appearance. PREFA sidings enable building façades to be ingeniously enhanced, maintained and modernised for decades to come.

  • Can be safely installed: diagonally, vertically or horizontally
  • 23 Colours to choose from
  • many design possibilities thanks to the combination of different visible widths
  • COATING: Coil coating
  • STANDARD MATERIAL:
    • 0.7 × 138 mm (thickness/visible side), stucco, lined with shadow gap option (also smooth for P.10)
    • 1.0 × 200 mm (thickness/visible side), smooth, lined or stucco, with shadow gap option
    • 1.2 × 300 mm (thickness/visible side), smooth, with shadow gap option
    • 1.2 × 400 mm (thickness/visible side), smooth, with shadow gap option (installation with storm-proof clip)
  • special visible widths (120 to 400 mm) upon request
  • ENDS: with or without edge downstand (11 mm)
  • SHADOW GAP: with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep
  • WEIGHT: approx. 3.30–4.30 kg/m² depending on the visible width
  • LENGTH:
    • 500–2,500 mm for all visible widths (with PREFA joint)
    • 500–6,200 mm for all visible widths (without PREFA joint)
