Brightstar - Model 16T -Aluminium Scrap Recycling Furnace

Aluminium scrap recycling furnace design

• Raw materials: aluminum scrap
• Products: ADC12 alloy
• Production capacity: about 6oT/24Hrs/line (3.5 furnaces/day)
• Fuel: Heavy oil (Calorific value>iooooKcal / Kg)

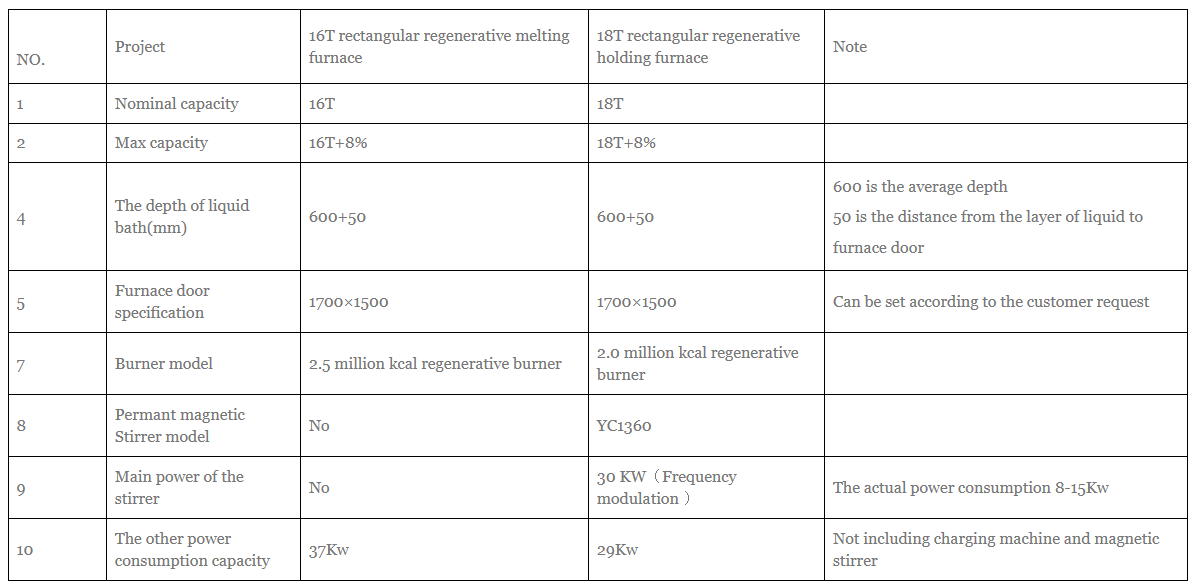

Aluminium scrap recycling furnace group

• One set of 16T rectangular regenerative melting furnace
• One set of 18T rectangular regenerative holding furnace
• One set of charging machine for melting furnace
• One set of permanent magnetic stirrer for holding furnace

1. Adopting high and low double discharge port structures, during normal production, the liquid aluminum is discharged into the holding furnace through the high discharge port.
2. The solid iron stays at the bottom of melting furnace due to its high density and cannot enter the holding furnace through the high discharge port. This can prevent the molten aluminum from the holding furnace from containing solid iron, causing the iron content in the molten aluminum to exceed the standard.
3. The low water outlet is used to drain the molten aluminum from the melting furnace when the melting furnace stops production.
4. The low drain can also be used as an emergency overflow hole when the molten aluminum needs to be transferred out when an accident occurs in the work of the melting furnace.
5. The smelting furnace discharges water to the holding furnace through the high water discharge port. After it is drained, about 0.5-1T of molten aluminum is stored at the bottom of the furnace.
6. At this time, solid iron is pulled out to prevent the molten aluminum from exceeding the standard when the melting continues.
7. Taking away the exhaust gas that is generated in the refining.
8. Initial skimming and refining will be done in melting furnace.
