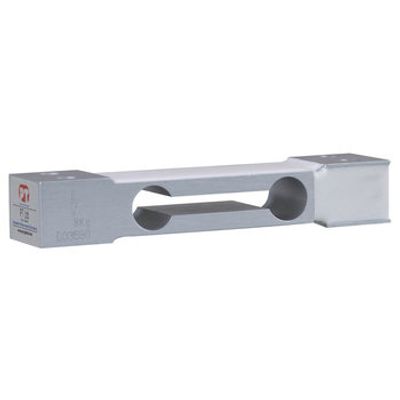

PT Limited - Model PTASP6-D -Aluminium Single Point Load Cell (2.5kg - 50kg)
FromPT Limited
(2.5kg~50kg) Aluminium, Low Cost, 250x350mm platform, alternative to PT1000 3-35kg. The PTASP6-D is a fully sealed IP65 super low profile single point load cell with capacities from 2.5kg to 50kg. A favorite for small platform and bench scales both retail and industrial.
Most popular related searches
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.017% FSO
- Creep/(30 mins.): < 0.015% FSO
- Zero Balance: < 2% Capacity
- Temperature Effect On Span/10°C : < 0.014% FSO
- Temperature Effect on Zero/10°C: < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: GREEN
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 409O ± 6O
- Output Impedance: 350O ± 3O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12V AC/DC
- Excitation Voltage (Max): 18 V AC/DC
- Cable: 0.4m long, Ø3.8 mm
- 4 core screened PVC
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: BLACK
- Signal -ve: WHITE
