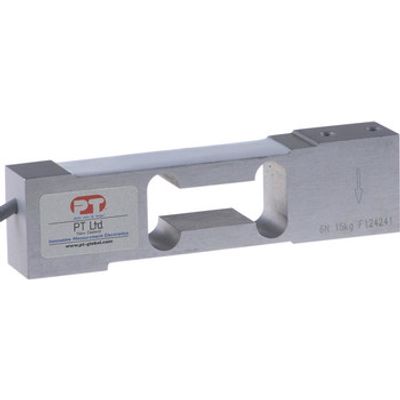

PT Limited - Model PTASP6-N -Aluminium Single Point Load Cell (3kg - 100kg)
FromPT Limited
(3kg~100kg) Aluminium, Low Cost, 400x400mm platform, alternative to PT2000. Low profile single point load cell designed for direct mounting in low cost scales. Suitable for most compact retail, bench and counting scales to 100kg capacity. Two additional sense wires feed back the voltage reaching the load cell which improves performance.
Most popular related searches
- Fully sealed
- C3 accuracy class
- Annodised for protection
- For platform and retail scales
- Suits 400mm x 400mm platform
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.020% FSO
- Zero Balance: < 2.0% Capacity
- Temperature Effect On Span/10C : < 0.014% FSO
- Temperature Effect on Zero/10C: < 0.017% FSO
- Operating Temperature Range: <-35 ~ +65 C
- Compensated Temperature Range: <-10 ~ +40 C
- Storage Temperature Range: <-50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: GREEN
- Sense +ve: BLUE
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 409O ± 6O
- Output Resistance: 350O ± 6O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18V AC/DC
- Cable:
- 3m long, 5.0 mm
- 6 core screened PVC
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: BLACK
- Signal -ve: WHITE
- Sense -ve: BROWN
