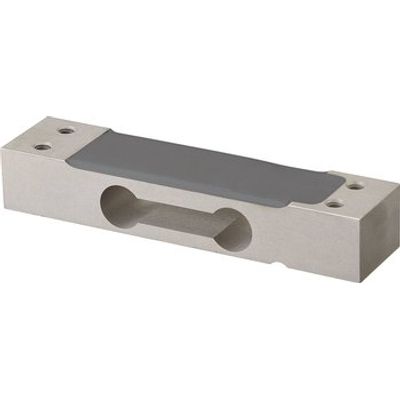

PT Limited - Model PT1000 -Aluminium Single Point Load cell (3kg - 250kg)

The larger size cell measures from 50kg to 250kg capacity and is ideal for platform sizes 400mm x 500mm.

This is a very compact cell for its capacity range.

Direct bolt industry standard makes both large and small PT1000`s ready replacements for other less well-protected models. The PT1000 comes as standard with SURESEAL sealing and is protected to IP66.

• Low cost retail scales
• Low cost bench and person weighers
• Hopper scales & net weighing scales

• Marine grade anodised finish
• Protected with   MHE^EAL™
• Dual design, increased capacities
• Generous platform sizes 350mm x 350mm up to 35kg
• Generous platform sizes 400mm x 500mm 50kg up to 250kg

• Nominal Capacity: 3kg ~ 250kg
• Signal Output at Capacity: 2mV/V ± 10%
• Linearity Error: < 0.020% FSO
• Non-Repeatability: < 0.010% FSO
• Combined Error: < 0.025% FSO
• Hysteresis: < 0.015% FSO
• Creep/Zero Return (30 mins): < 0.030% / 0.020% FSO
• Zero Balance: < 3.000% Capacity
• Temperature Effect On Span/10°C : < 0.010% FSO
• Temperature Effect on Zero/10°C: < 0.015% Capacity
• Compensated Temperature Range: - 10 ~ 40°C
• Operating Temperature Range: - 30 ~ 70°C
• Service Load: 100% of Rated Capacity
• Safe Load: 150% of Rate Capacity
• Ultimate Load: 300% of Rated Capacity
• Excitation +ve: RED
• Signal +ve: GREEN
• Input Impedance: 425O ± 15O
• Output Impedance: 350O  ± 3O
• Insulation Impedance: >5000 MO at 100V DC
• Excitation Voltage (Rec): 5 ~ 12V AC/DC
• Excitation Voltage (Max): 15V AC/DC
• Eccentric Loading (effect/cm):
• < 0.0085% FSO (3 ~ 35kg)
• < 0.0074% FSO (50 ~ 250kg)
• Deflection at Rated Capacity: < 0.4mm
• Storage Temperature Range: -50 ~ 70°C
• Cable Type:
• 4mm, Screened, PVC Sheath
• 4 core x 0.09mmª (28 AWG)
• Cable Length:
• 0.5 Metre (3kg ~ 35kg)
• 1 Metre (50kg ~ 250kg)
• Material: Aluminium
• Finish: Marine Anodised
• Excitation -ve: BLACK
• Signal -ve: WHITE
