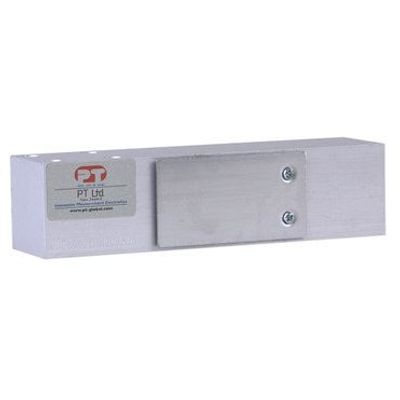

PT Limited - Model PTASP6-Q -Aluminium Single Point Load Cell (50kg - 250kg)
FromPT Limited
(50kg~250kg) Aluminium, Low Cost, 400x400mm platform, alternative for PT1000 50kg - 250kg. The PTASP6-Q is a single point low profile load cell. Suits all single mount platforms and hanging scale applications from 50kg to 250kg. Used in packaging machines, closing/filling, belt/convey or and in motion check weigh scales.
Most popular related searches
- Fully sealed
- C3 accuracy class
- Annodised for protection
- For platform and retail scales
- Suits 400mm x 400mm platform
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.020% FSO
- Zero Balance: < 2% Capacity
- Temperature Effect On Span/10C: < 0.014% FSO
- Temperature Effect on Zero/10C: < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: GREEN
- Signal +ve: RED
- Sense +ve: BLUE
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 406O ± 6O
- Output Resistance: 350O ± 3O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18 V AC/DC
- Cable: 3m long, Ø5.0 mm
- 6 core screened PVC
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: BLACK
- Signal -ve: WHITE
- Sense -ve: BROWN
