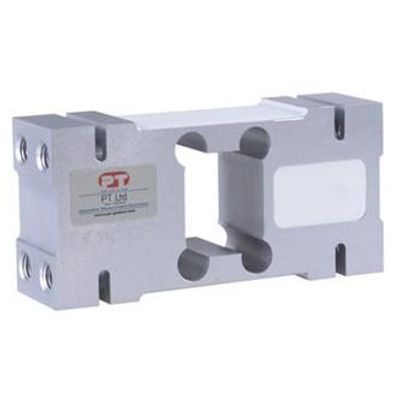

PT Limited - Model PTASP6-F -Aluminium Single Point Load Cell (50kg - 2t)
FromPT Limited
(50kg~2000kg) Aluminium, Low Cost, 600x600mm to 1200x1200mm platforms. The PTASP6-F is a super high capacity single point load cell. A unique design allows for very large platform sizes up to 1200mm x 1200mm. Direct mounted in this design makes a low profile platform with one single load cell. This load cell is used in many other applications where a relatively small high capacity cell can be housed in a construction such as in hanging or crane scales plus many other industrial applications from check weighing to safety areas. Two additional sense wires feed back the voltage reaching the load cell which improves performance.
Most popular related searches
- Fully sealed
- C3 accuracy class
- Annodised for protection
- For larger platform scales
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.020% FSO
- Zero Balance: < 2.0% Capacity
- Temperature Effect On Span/10C : < 0.014% FSO
- Temperature Effect on Zero/10C: < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: BLUE
- Sense +ve: BROWN
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 409O ± 6O
- Output Resistance: 350O ± 6O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18V AC/DC
- Cable: 3m long, Ø6.2 mm
- 6 core screened PVC
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: YELLOW
- Signal -ve: WHITE
- Sense -ve: BLACK
