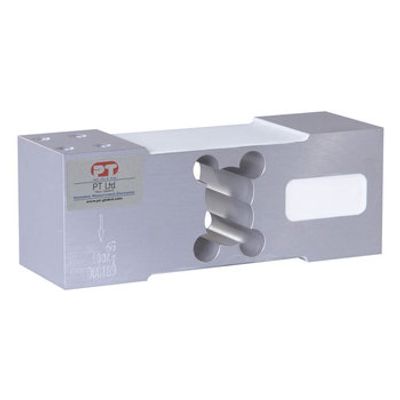

PT Limited - Model PTASP6-G -Aluminium Single Point Load Cell (50kg - 600kg)
FromPT Limited
(50kg~600kg) Aluminium, Low Cost, 600x600mm platform. Medium to high capacity versatile single point load cell. Suitable for most simple weighing scales in industrial use. The PTASP6-G has a small physical footprint in relation to its capacity, making it ideal for low cost compact medium/high capacity scales. Typical applications often include packaging machines, filling machines, industrial process control. Two additional sense wires feed back the voltage reaching the load cell which improves performance. Sealed to IP56.
Most popular related searches
- Fully sealed
- C3 accuracy class
- Annodised for protection
- For larger platform scales
- Suits 600mm x 600mm platform
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.015% FSO
- Zero Balance: < 2.0% Capacity
- Temperature Effect On Span/10C Temperature Effect on Zero/10C: < 0.014% FSO
- < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: GREEN
- Sense +ve: BLUE
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 409O ± 6O
- Output Resistance: 350O ± 3O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18V AC/DC
- Cable: 3m long, Ø6.0 mm
- 6 core screened PVC
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: BLACK
- Signal -ve: WHITE
- Sense -ve: YELLOW
