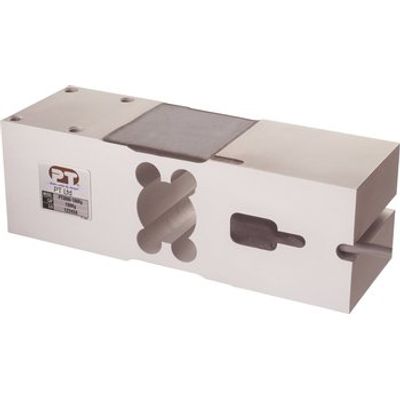

PT Limited - Model PT3000 -Aluminium Single Point Load cell (50kg - 635kg)

SHARE

(50kg~635kg Anodised Aluminum) Bench and platform scales 600x600mm platform. Having a high number of specific capacities and low sensitivity to off-center loading allows better selection for accuracy in high speed weighers, check weighers, hopper scales & net weighers. Available in 9 capacities from 50kg to 635kg with a maximum platform size of 600mm x 600mm. This is a perfect load cell for the light to medium bench and platform scale market. Used extensively in process weighing, check weighing, bag filling and overhead track weighing. The PT3000 is a robustly constructed marine grade anodised cell with SURESEAL protection to IP66.

Most popular related searches

single point load cell

process weighing

marine protection

Bench & platform scales
Check weighers & bag fillers
Process weighing

Marine grade anodised finish
Protected with SURESEAL
Compact size, metric thread
Generous platform sizes to 600mm x 600mm

Nominal Capacity: 50kg ~ 635kg
Signal Output at Capacity: 2mV/V ± 10%
Linearity Error: < 0.020% FSO
Non-Repeatability: < 0.010% FSO
Combined Error: < 0.025% FSO
Hysteresis: < 0.015% FSO
Creep/Zero Return (30 mins): < 0.030% / 0.020% FSO
Zero Balance: < 3.000% Capacity
Temperature Effect On Span/10°C : < 0.010% FSO
Temperature Effect on Zero/10°C: < 0.015% Capacity
Compensated Temperature Range: - 10 ~ 40°C
Operating Temperature Range: - 30 ~ 70°C
Service Load: 100% of Rated Capacity
Safe Load: 150% of Rate Capacity
Ultimate Load: 250% of Rated Capacity
Excitation +ve: RED
Signal +ve: GREEN
Input Impedance: 425O ± 15O
Output Impedance: 350O ± 3O
Insulation Impedance: > 5000 MO at 100V DC
Excitation Voltage (Rec): 5 ~ 12V AC/DC
Excitation Voltage (Max): 15V AC/DC
Eccentric Loading (effect/cm): < 0.005% FSO
Deflection at Rated Capacity: < 0.4mm
Storage Temperature Range: -50 ~ 70°C
Cable Type: 4mm, Screened, PVC Jacket
4 core x 0.09mmª (28 AWG)
Cable Length: 3 Metres
Net Weight: 1.85kg
Material: Aluminium
Finish: Marine Anodised
Excitation -ve: BLACK
Signal -ve: WHITE
