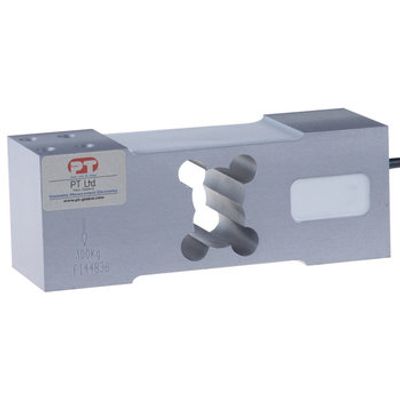

PT Limited - Model PTASP6-W -Aluminium Single Point Load Cell (50kg - 635kg)
FromPT Limited
(50kg~635kg) Aluminium, Low Cost, 600x600mm to 600x800mm platforms, alternative to PT3000. The PTASP6-W is a high capacity single point load cell which is interchangeable with many models of this construction worldwide. Designed for direct mounting in weighing platforms or side mounted in some applications, it finds many uses in counting, check weighing and general bench weighing scales. Two additional sense wires feed back the voltage reaching the load cell which improves performance.
Most popular related searches
- Fully sealed
- C3 accuracy class
- Annodised for protection
- Suits larger platform scales
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.015% FSO
- Zero Balance: < 2% Capacity
- Temperature Effect On Span/10°C : < 0.014% FSO
- Temperature Effect on Zero/10°C: < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: GREEN
- Sense +ve: BLUE
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 406O ± 6O
- Output Resistance: 350O ± 3O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18 V AC/DC
- Cable: 3m long, Ø5.0 mm
- 6 core screened PU
- Material: Aluminium Alloy
- Sealing: IP65
- Excitation -ve: BLACK
- Signal -ve: WHITE
- Sense -ve: YELLOW
