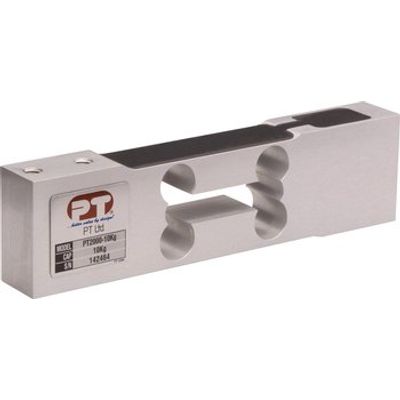

PT Limited - Model PT2000 -Aluminium Single Point Load cell (5kg - 100kg)
FromPT Limited
(5kg~100kg Anodised Aluminum) Small bench scales and systems, 400x400mm platform. Our most popular single point model, used in high numbers in shop counter retail and bench scales. The PT2000 is available in 9 capacities from 5kg to 100kg. Industry standard design allows interchange with many manufacturers models. A popular cell for retail scale manufacture because of its generous platform size of 400mm x 400mm, also used extensively in belt conveyer and check weighing applications.
Most popular related searches
Protected with SURESEAL to IP66 the PT2000 is standard with overload protection facility built-in.
Marine grade anodised and designed to have low sensitivity to off-center loading it`s a perfect load cell selection for the volume scale manufacturer.
- Low cost retail scales
- Low cost bench scales
- Hopper scales & net weighing scales
- Marine grade anodised
- Protected with SURESEAL
- Industry standard interchange design
- Generous platform sizes up to 400mm x 400mm
- Overload protection facility
- Nominal Capacity: 5kg ~ 100kg
- Signal Output at Capacity: 2mV/V ± 10%
- Linearity Error: < 0.020% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.025% FSO
- Hysteresis: < 0.015% FSO
- Creep/Zero Return (30 mins): < 0.030% / 0.020% FSO
- Zero Balance: < 3.000% Capacity
- Temperature Effect On Span/10°C : < 0.010% FSO
- Temperature Effect on Zero/10°C: < 0.015% Capacity
- Compensated Temperature Range: - 10 ~ 40°C
- Operating Temperature Range: - 30 ~ 70°C
- Service Load: 100% of Rated Capacity
- Safe Load: 150% of Rate Capacity
- Excitation +ve: RED
- Signal +ve: GREEN
- Ultimate Load: 300% of Rated Capacity
- Input Impedance: 425O ± 15O
- Output Impedance: 350O ± 3O
- Insulation Impedance: >5000 MO at 100V DC
- Excitation Voltage (Rec): 5 ~ 12V AC/DC
- Excitation Voltage (Max): 15V AC/DC
- Eccentric Loading (effect/cm): < 0.0074% FSO
- Deflection at Rated Capacity: < 0.4mm
- Storage Temperature Range: -50 ~ 70°C
- Cable Type: 4mm, Screened, PVC Sheath
- 4 core x 0.09mmª (28 AWG)
- Cable Length: 2 Metres
- Material: Aluminium
- Finish: Marine Anodised
- Excitation -ve: BLACK
- Signal -ve: WHITE
