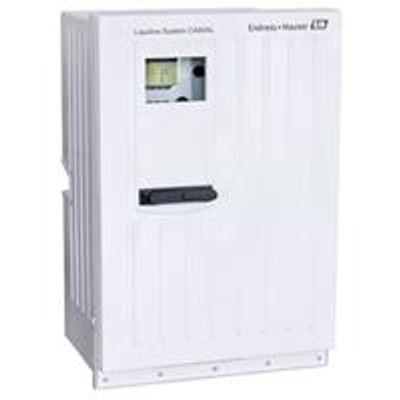

Liquiline - Model CA80AL -Aluminum Analyzer System
Colorimetric system for drinking water and wastewater monitoring and optimization of process control. Liquiline System CA80AL offers precise, regulation-compliant online measurement of aluminum residues in drinking water and wastewater. The analyzer helps you to optimize aluminum dosing in flocculation processes and phosphate removal. It enables plug & play of up to 4 Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.
-
The aluminum analyzer uses the pyrocatechol violet method according to DIN ISO 10566, ensuring direct comparability to lab results
-
Supports predictive maintenance by advanced diagnostics
-
Reduces operating costs thanks to automatic calibration and cleaning as well as low reagent consumption
-
Easy upgrade of functionality to a complete measuring station - by adding modules and connecting Memosens sensors.
-
Comfortable remote access via integrated web server
-
Seamless integration into process control systems thanks to digital field buses such as Modbus, PROFIBUS, EtherNet/IP
Liquiline System CA80AL aluminum analyzer supports:
-
Limit monitoring in drinking water
-
Optimization of aluminum-based coagulation processes
-
Phosphate elimination in wastewater treatment plants
-
Measuring principle
Colorimetric
-
Characteristic
Process analyzer for aluminum in aqueous solutions
Comply with standard colorimetric measuring principle - pyrocatechol violet methot -
Size
Cabinet
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in
Stand housing
1693 -
Design
Open design, cabinet and stand housing
High-Performance plastic ASA-PC, additional stand coated steel -
Process temperature
4 ... 40 °C (39.2 ... 104 °F)
-
Ambient temperature
5 ... 40C ( 41 ... 104F)
-
Process pressure
at atmospheric pressure, < 0.2 bar
-
Sample flow rate
min. 5ml/min (0,17 fl.oz/min)
-
Consistency of the sample
low solid content (< 50NTU), aqueous homogeneous
-
Application
Monitoring of the aluminum content of potable water, mineral water and industrial waste water
-
Power supply
100 ... 120 VAC / 200 ... 240 VAC ± 10%
24 VDC ± 10%
50 ± 1 oder 60 ± 1,2 Hz -
Output
2x 0/4 ... 20 mA
Webserver, Modbus, Ethernet/IP, Profibus DP -
Input
1 or 2 measuring channel
1 ... 4 digital sensor inputs for sensors with Memosens protocol (optional) -
Measurement range
15 ... 1000 µg/l
-
Consumables
Reagents and standard solutions CY80AL as well as cleaner CY800 are necessary for the operation. Regular maintenance is done with the parts of the maintenance kit CAV800.
