How is Aluminum Coated Steel Chain Link Fence Mesh produced?

Aluminized steel chain link fence is not made of aluminum wire, it is a kind of aluminum powder coated steel wire fence.

The base metal for making aluminized chain link mesh  is high quality medium-carbon aluminum coated wire. The wire is coated with aluminum to produce a smooth and uniform coating. The weight of aluminum coating, wire sizes with allowable variances, and wire breaking strength, conform to ASTM A 817 for the wire size specified. Wires for chain link fence is usually galvanized, then covered with an aluminum coating which offers extra protection against corrosion and rusting.

The coating is produced by passing the cleaned wire through a melting bath of aluminum metal.

The wire aluminum coated is then woven with chain link fence machine.

Aluminum coated chain link fence is supplied meeting these Standards:

• ASTM A 491 Aluminum-Coated Steel Chain Link Fence.
• ASTM F567 Installation of Chain Mesh Fencing.
• ASTM A 817 Metallic-Coated Wire for use in Chain-Link Fence Federal specification. RR-F- 191 K/1 D Type II, Fencing, Wire and Post Metal (Chain-Link Fence Fabric) American Association of State Highway Transportation Officials M-181 Chain Link Mesh, Type II.

Why Aluminium Coated instead of Zinc Coated Finish?
The primary benefit of aluminized steel chain link mesh fence over regular galvanized fence is that it is much more resistant to corrosion and can often last much longer. It is also more durable and can be used in harsher environments. Another advantage is that the coating offers better UV protection, which can help protect the fencing from fading due to prolonged exposure to sunlight.

Selvage Finishes for Aluminum Coated Steel Fences:
Knuckling type of selvage: obtained by interlocking adjacent pairs of wire ends and then bending the wire ends back into a closed loop. Usually knuckle is standard unless otherwise stated.
Twisting - This type of selvage is obtained by twisting adjacent pairs of wire ends together in a closed helix of 1-1/2 machine turns, which is equivalent to three full twists, and cuffing the wire ends at a sharp angle to provide sharp points. The wire ends beyond the twist shall be at least 1/4 inch (6.4mm) long.

Aluminized chain link fence has the features of resistance to moisture, corrosion resistance, excellent resistance to sudden temperature changes and high durability.

1. Heavier and more thorough coating with no flaking and bare trim ends.
2. Additional protective coating to prevent rust.
3. All components of fence systems are zinc coated.
4. Consistently meets ASTM specifications.
5. Corrosion resistance, Lightness and Long life time.
6. High tensile and easy installation.

Basic Specifications:

• The specifications of aluminum chain link fencing depend on Customer requirement and may vary slightly, typically include: fencing sizes of 36" to 72"; height options from 3` to 12`; post widths from 1-3/8" to 2"; gauge of steel ranging from 11.5 to 13.5 gauge; and mesh size from 2" to 6".
• Diameter Wire: 3mm , 4 mm , 5mm
• Aperture: 3 x 3 , 4 x 4 , 5 x 5
• Panel Width: 1m, 1.5m, 2.0m, 2.5m, 5m.

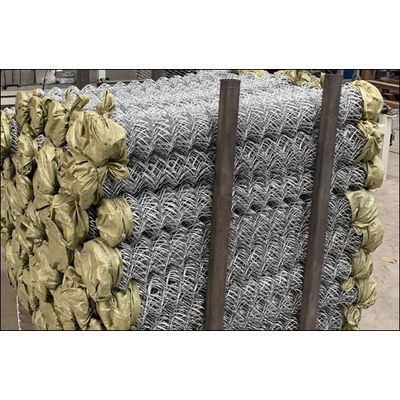

• Package: 20m/roll, 25m/roll, 30m/roll, 50m/roll, 100m/roll, or 35kg/roll, 50kg/roll.

Customized specifications

1. Aluminum Zinc Steel Fence
1. Material:aluminum/galvanized+power coated
2. Height: 1.8m, Width: 2.4m
3. Horizontal tube: 25*25*1.2mm--3 pieces
4. Standpipe: 16*16*1.0mm--18 pieces
5. Post: 3m*50*50*1.5mm
6. Weight:10.5KG /set 40HQ loading: 290sets
2. Aluminum or aluminized chain link fence. Gauge 9. 2 inches squares for the mesh. 8 feet tall.
3. Feet x 30 feet roll of aluminized chain link fence 9 gauge 2 inch mesh.
