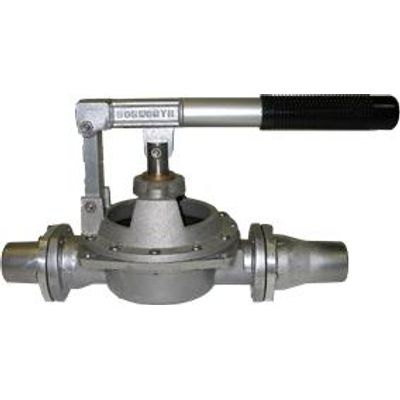

Guzzler - Model GH-3500A -Aluminum Hand Pump
Rugged, all-aluminum hand pump ideal for larger bilge or fluid transfer needs in marine, sanitation or industrial applications.
Most popular related searches
- Rugged aluminum and stainless steel components
- Accommodates 1" - 1-1/2" hose
- 15 GPM
- Unique guided-stroke clamp ring transfers more of the pumping force into fluid motion
- Ideal for pumping heavy, viscous fluids (e.g., grout, etc.)
- Clamp ring adjusts to 12 different handle positions
- Max Pressure: 15 psi / 1.03 bar
- Lift: 12.0 ft / 3.7 m
- 22.0 ft / 6.7 m with check valve
- Head: 30 ft / 9.1 m
- Capacity (@ 90 strokes/min): 14.0 gpm / 53.0 lpm
- Volume per stroke: 0.62 qt / 0.59 l
- Max Service Temp: 190° F / 88° C
- Handle Style: Horizontal/Silver
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis/Button Assembly: SS Buttons & SS Clevis
- Clamp Ring: Epoxy-coated Aluminum w/Stroke Guide Brack
- Inlet Hose Connection: 1-1/2" Smooth
- Outlet Hose Connection: 1-1/2" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports * Aluminum (Silver)
- Clamp Ring Aluminum (Silver) with Stroke Guide
- Handle Aluminum: Horizontal (Silver)
- Valves * Flapper, Duckbill
- Diaphragm * Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly * Stainless Steel Buttons & Aluminum Clevis
- Other Aluminum mounting standoffs
