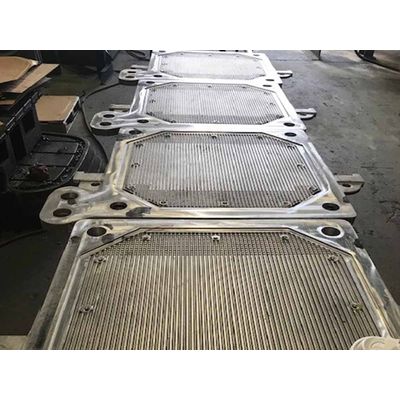

Sperry - Model 762mm -Aluminum Heated Plates for Textile Filtration Applications
The Sperry Model 762mm Aluminum Heated Plates are specifically engineered for the textile industry, offering superior performance in filtration applications. These robust plates are designed to withstand varying pressures and temperatures, as per the provided pressure/temperature chart. It's crucial to note that temperature differentials exceeding 20 degrees F during a cycle can cause thermal shock and potential plate failure. The chemical composition of the slurry can also impact the operational parameters, so it's recommended to consult the factory for chemical resistance guidance. These plates are available in a range of materials to suit different applications, including Cast Iron (with options for Teflon coating, Heresite coating, and more), 304 and 316 Stainless Steel, and specialized materials like Hastelloy and Kynar PVDF. The 762mm Aluminum plates are steam-heated, ensuring consistent performance and reliability in demanding textile processes.

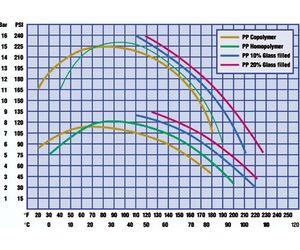

- The pressure chart is a guideline for filtration or wash pressures at certain temperatures.
- Temperature differentials during a cycle of more than 20 degrees F can induce thermal shock and plate failure.
- Chemical composition of the slurry can reduce operating parameters of filter plates. Contact the factory for chemical resistance guidance.
Listed below are the materials from which D. R. Sperry manufacturers filter press plates. The charts indicate current Sperry plate patterns by plate style, material, and size of filtration area. These charts reflect standard Sperry plates and do not include special plates which Sperry can produce and which may be indicated for your application.
- Cast Iron: Aluminum (steam-heated) Teflon coated
- Cast Iron (steam-heated): Polypropylene
- Cast Iron-Heresite coated: 10% glass-filled Polypropylene
- Cast Iron-galvanized: Hi-temp glass-filled Polypropylene
- Cast Iron-lithcote: Hastelloy B (heat-treated)
- 304 Stainless: Hastelloy C
- 304 Stainless (steam-heated): Ductile Iron
- 316 Stainless: Ni Resist
- 316 Stainless (steam-heated): Kynar PVDF
- Cast Iron-nickel coated: Bronze
- Aluminum: Nickel Iron
- Aluminum (steam-heated): CI-Firmacoat
