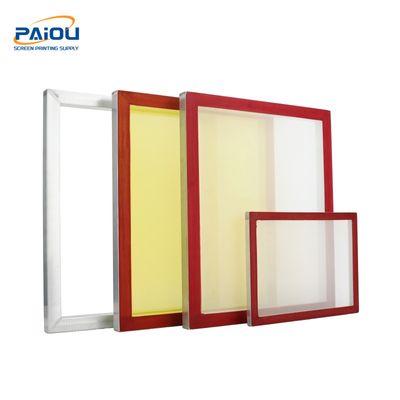

PAIOU - Aluminum Screen Frame without Mesh

• Best Quality
• Excellent service
• Product: Aluminum Screen Frame without Mesh
• Material: aluminum profile with polyester Screen Printing Mesh
• Frame size: 8X12”, 12X24”, 18x20", 20x24", 23x31", 25X36” or as request
• Aluminum profile: 35X35mm,25x38mm,30X40mm,30x30mm,38x38mm etc.
• Screen tension stretch: 0-30N or as request
• Application: for screen printing
• Packaging Details: in cartons or pallet

• Constructed with 6063 T5 Alloy, Argon arc welding securely to ensure a water tight seal.
• Ground smooth for flatness and handling easily.

Popular Frame Size: Profile  Size

• 18’’*20’’: 35*35*1.2/1.4mm (1-3/8’’ * 1-3/8’’)
• 20’’*24’’: 35*35*1.2/1.4mm (1-3/8’’ * 1-3/8’’)
• 23’’*31’’: 38*38*1.4/1.6mm (1-1/2’’ * 1-1/2``)
• 25’’*36’’: 38*38*1.6/1.8mm (1-1/2’’ * 1-1/2``)

Remarks: Special sizes are customized

Which is widely used for the garments, cloth, T-Shirts, electronics, glass, ceramics, paper, outdoor advertisement, large format printing machine or manual work. The aluminum profile is done by mature argon arc welding. Anti corrosion, oxidation, distortion; smooth surface and easy to operate.
