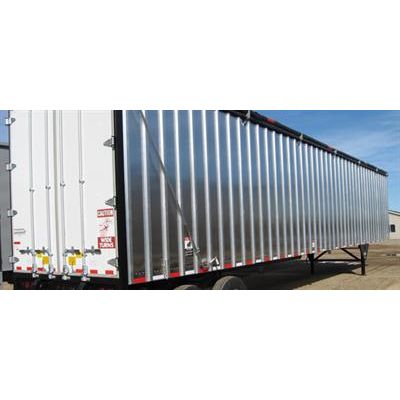

Wilkens - Model Series ARO -Aluminum Sheet & Post Open Top Tipper Trailer

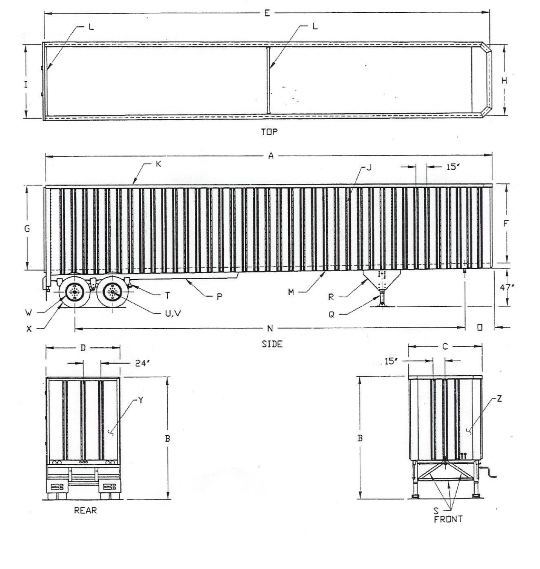

Outside Dimensions

• LENGTH: 40’- 53’
• HEIGHT: 13’6”
• WIDTH FRONT: 102”
• WIDTH REAR: 102”

Inside Dimensions

• LENGTH: 39’9” - 52’9”
• HEIGHT FRONT: 104”
• HEIGHT REAR: 104”
• WIDTH FRONT: 96”
• WIDTH REAR: 96”

Trailer Features

• SIDEWALL CENTERS: 5052H32 .125 ALUMINUM SHEET WITH 6061T6 ALUMINUM POSTS ON 15” CENTERS
• TOP RAIL: WILKENS HEAVY DUTY ALUMINUM TUBE 4”x 6”x 3/8”
• SPREADER BAR: 3” x 3” x 1/4” STEEL TUBE
• BOTTOM RAIL: 10GA. FORMED STEEL TUBE
• KING PIN/LAST AXLE: 36’ – 47’
• KING PIN SETTING: 48” WITH 5/16” STEEL T-1 PLATE
• SUB-FRAME: 4” X 8” X 3/16” STEEL TUBE
• LANDING GEAR: HOLLAND MARK V
• GEAR SUPPORT: 7GA
• GEAR BRACES: 3” CHANNEL
• SUSPENSION: HUTCH TANDEM 9700 SINGLE LEAF SPRING, 48,000# CAPACITY
• AXLES & BRAKES CHAMBERS: (2) 5” ROUND, 25,000# AXLES, 452M ABS WITH TOP MOUNT CHAMBERS
• HUBS: 10 BOLT
• RIMS: STEEL DISC
• TIRES: 11R X 22.5, 14PLY
• REAR DOOR: CURBSIDE SWING, H.D. HINGES – TOP HINGED
• FRONT PANELS: 5052H32 .125 ALUMINUM SHEETS WITH 6061T6 POSTS
• KING PIN SECTION: FABRICATED FROM ½” T-1 PLATE
• CROSSMEMBERS: 4” X 3.2# ON 15” CENTERS, STEEL I-BEAM
• LIGHT SYSTEM: TRUCK LIGHT 40 SERIES, LIGHT IN DOOR
• COVER: ROLL TARP REAR CRANK
• UNLOADING SYSTEM: TIPPER FLOOR
• FLOOR THICKNESS: ¼” ALUMINUM
• LANDFILL EQUIPMENT: TOW HOOKS, PUSH BUMPERS
• METAL PREPARATION: EXTERIOR SANDBLASTED, EPOXY PRIMER
• PAINT: ENAMEL
• FRONT CORNERS: 10” DIAGONAL RADIUS
• WEIGHT: 13,000# - 15,500#
