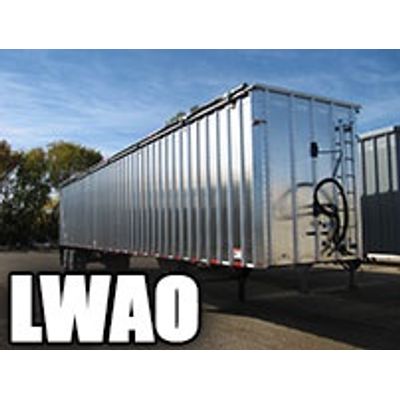

Wilkens - Model LWAO -Aluminum Sheet & Post Open Top Walking Floor / Tipper Trailer

Outside Dimensions

• LENGTH: 53’
• HEIGHT: 13’6”
• WIDTH FRONT: 102”
• WIDTH REAR: 102”

Inside Dimensions

• LENGTH: 52’9.5”
• HEIGHT FRONT: 106.5”
• HEIGHT REAR: 106.5”
• WIDTH FRONT: 97”
• WIDTH REAR: 97”

Trailer Features

• SIDEWALL CENTERS: 5052H32 .080 ALUM. SHEETS WITH HUCK-BOLTED 6061T6 ALUM. POSTS 15” O/C
• TOP RAIL: WILKENS SELF CLEANING EXTRUDED ALUMINUM TUBE
• SPREADER BAR: (3) 2” X 2” X 3/16” ALUMINUM SPACED EVEN WITH ONE IN CENTER
• BOTTOM RAIL: 10 GA FORMED STEEL J-RAIL
• KING PIN/LAST AXLE: 43’6”
• KING PIN SETTING: 36” WITH ¼” STEEL DOMEX PLATE
• SUB-FRAME: 4” X 8” X 3/16” STEEL TUBE EXTENDED PAST DRIVE UNIT
• LANDING GEAR: HOLLAND MARK V, DRIVERS SIDE CRANK
• GEAR SUPPORT: 10 GA STEEL
• GEAR BRACES: 3” STEEL CHANNEL
• SUSPENSION: TANDEM HUTCH SPRING 9700, 50,000LB
• AXLES & BRAKES: (2) 5” ROUND, 25,000# AXLES, WABCO 4S1M ABS, WITH TOP MOUNT CHAMBERS
• HUBS: 10 BOLT UNIMOUNT, LIGHT WEIGHT CAST DRUMS
• RIMS: STEEL 10-HOLE DISC 8.25 x 22.5
• TIRES: (8) 11R x 22.5, 14PLY
• REAR DOOR: ALUMINUM SHEET HDPE FILLED DOUBLE DOORS, DOUBLE LOCKS
• FRONT PANELS: 5052H32 .125 ALUMINUM SHEETS WITH 6061T6 POSTS, INSIDE BAFFLE .190 ALUM.
• KING PIN SECTION: FABRICATED FROM ¼” DOMEX STEEL CHANNEL
• CROSSMEMBERS: 4” X 3.2# ON 15’ CENTERS, STEEL I-BEAM
• LIGHT SYSTEM: TRUCK LIGHT 40 SERIES (LED), MIDSHIP TURN SIGNAL, LIGHTS IN BUMPER
• COVER: ROLL TARP, REAR CRANK WITH RACHETS & STRAPS
• UNLOADING SYSTEM: KEITH RUNNING FLOOR II, 3” DRIVE, 36 TON
• FLOOR THICKNESS: WILKENS LWAO FLOOR, REAR T-BLOCKS, ALUM SUB-DECKING
• MISC EQUIPMENT: TOW HOOKS, PUSH BUMPERS, MANIFEST BOX, ALUMINUM LADDER
• METAL PREPARATION: STEEL COMPONITS EXTERIOR SANDBLASTED, EPOXY PRIMER
• PAINT: BLACK ENAMEL ON STEEL COMPONETS, ALUMINUM SHEETS & POSTS LEFT NATURAL ALUMINUM
• FRONT CORNERS: 5” DIAGONAL RADIUS
• WEIGHT: 14,400 LBS
