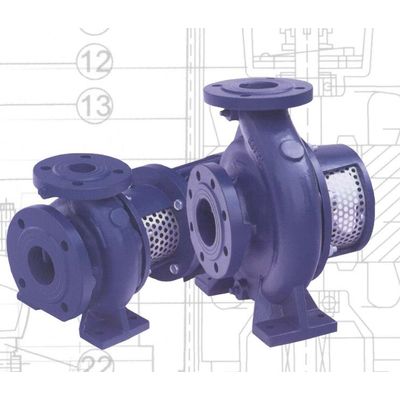

Alvest - Model PAZ -Close Coupled Centrifugal Pump
PAZ single stage close coupled centrifugal pump with performance and key dimensions in accordance with DIN24255 standard, for horiaontal installation. The back-pull-out construction allows the pump to be disassem-beld without disturbing the suction and discharge pipework.
Electric motor:
The pump is supplied complete with a standard flange or face mounted TEFC IP55 electric motor to IEC dimensions. NEMA, Eexd. Ex (N). single phase and Energy Efficient motors are readily available as options.
Shaft seal:
Single carbon wCeramic mechanical seal with Nitrile elas-tom ers as standard. Pumps can be fitted with a wide varietyof single and double me chanical seals or packed gland asrequired.
Pump and motor combinations:
Only the common pump and motor combinations for 50 h/ operation on water are included within this publication. For dimensions and performance of other pump and motor combinations.
- Water supply
- Cooling water
- Air conditioning
- Heating circulation
- Industrial fluids
