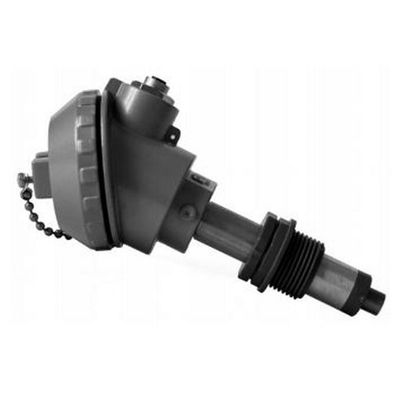

ALVIM - Model A001S3 -Biofilm Sensor
FromAlvim Srl
ALVIM standard sensor, suitable for most industrial applications. Given its corrosion resistance, it is particularly indicated for seawater applications.
Connection to the process : 1" BSPP threaded connector. Materials in contact with the process : Titanium (working electrode), Zinc (counter electrode), PVC (threaded connector). Sensitivity : 1-100% of surface covered by biofilm (i.e. the first bacterial layer).Most popular related searches
- Operating conditions :
- Temperature: : -10<T<+60 °C (to monitor biofilm growth: +2<T<+40 °C)
- Oxygen: : >1 ppm (at the maximum sensitivity level)
- Pressure: <10 bar
- Conductivity: : >10 uS/cm
- Power supply : 12 / 24 V DC ±20%, 500 mA
- Data communication : 4-20 mA and RS485/MODBUS RTU
- Wiring : 6-wire cable (external diam.<8 mm, wire section=0.5 mm2)
