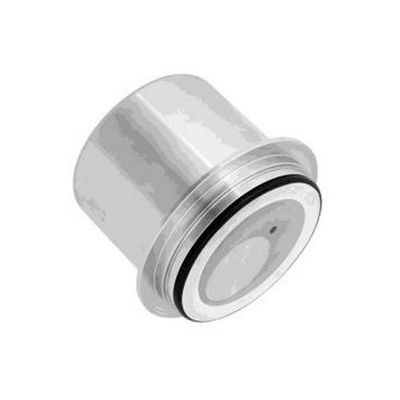

ALVIM - Model AS01S3 -Biofilm Sensor
FromAlvim Srl
With hygienic connection to the process, flat surface in contact with the liquid and high resistance to chemical treatments, this model is indicated for applications where hygiene is critical.
Connection to the process : VARIVENT TypeN (for pipes from DN 40 to DN 150). Materials in contact with the process : Stainless Steel (working electrode, VARIVENT connector), coated Titanium (counter electrode). PEEK O, EPDM (O-Ring). Sensitivity : First bacterial layer.Most popular related searches
- Operating conditions:
- Temperature:: -10<T<+150°C (to monitor biofilm growth: +2<T<+40°C)
- Oxygen:: >1 ppm
- Pressure:: <10 bar
- Conductivity:: >30 uS/cm
- Power supply: 12 / 24 V DC ±20%, 500 mA
- Data communication: 4-20 mA and RS485/MODBUS RTU
- Wiring: 6-wire cable (external diam.<8 mm, wire section=0.5 mm2)
