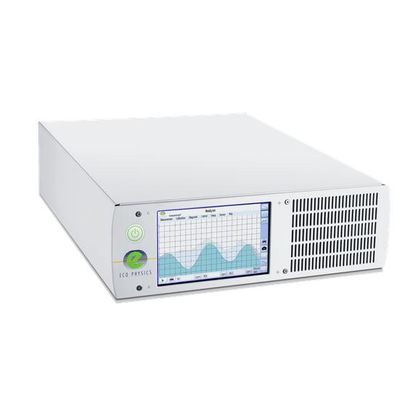

ECO - Model nCLD AL3 -Ambient Level Gas Analyzer

Flexible Ambient Air Monitoring
The nCLD AL3 is the ideal instrument for ambient air monitoring, either installed in racks, fixed monitoring stations or mobile laboratories. Besides the ambient air in the open environment, the analyzer is also suitable for air quality monitoring in production plants and offices (TLV = threshold limit value). The nCLD AL3 is a one-channel NO_X-detector based on a modular principle. The measurement ranges are individually adjustable, the parameters are NO, NO_2,NO_X and NH3. The instrument’s inlet operates at ambient pressure. Calibration of the unit runs quick and automatic while all necessary data is continuously stored and readily available anywhere and at any time.

User Friendliness
The new touch sensitive graphical user interface enables the user to individually adjust the instrument operation and data management according to his/ her needs and applications. The bright 7” monitor gives a clear overview and allows numerical and graphical display of values. Multiple digital in- and outputs guarantee a maximal connectivity and flexibility for the remote operation, control and maintenance of the nCLD AL3, ensuring unsurpassed precision and reliability.

Compact, Modular and Intelligent!
The nCLD AL3 is manufactured in a new compact and modular layout, in which each essential component of the chemiluminescence analyzer hosts its own CPU and interacts with other CPUs by BUS-communication. This assembly increases accessibility and serviceability by reducing wiring and piping. The measurement principle will conform to the standard method for NO_X-detection in ambient air (EN 14211).
