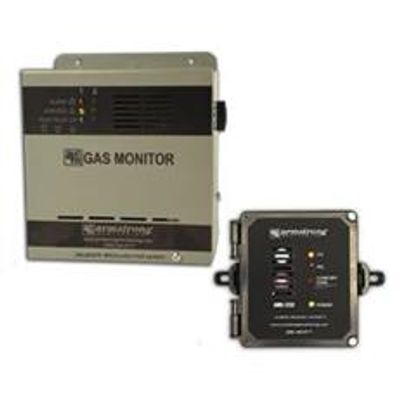

AMC - Model 1AD/122X Series -Multi-Sensor Gas Monitoring System
The AMC-1AD1/2 series monitor provides one or two zones of detection in conjunction with the AMC-122X series of sensor modules. AMC- 1AD systems are available with up to 8 sensors per zone, and sensors are available for CO, NO2, combustibles, and mixed vehicles, with some versions eligible for our EZ Cal Sensor Exchange program. The AMC-1AD series systems are among the most reliable and cost effective options available for monitoring in larger spaces, such as parking garages, large service facilities, and warehouses.
The AMC-1AD Series Gas Monitor provides a highly economical monitoring package for multipoint vehicle exhaust monitoring applications.
Incorporating micro-controller based design; it provides accuracy, durability, and ease of use within a compact package. The AMC-1AD Series Monitor works with any combination of AMC-122X Series sensor modules, with up to 8 modules per zone.
The monitor delivers low cost and versatility, turning even the simplest job into big savings. It incorporates a robust enclosure designed to provide years of trouble free operation.
- Enclosure: ASA 61 gray enameled 16 gauge steel
- Nema 4X Fiberglass (Optional)
- Supply Voltage: 120 VAC, 60 Hz
- Dimensions: 20.32cm H x 20.32cm W x 12.70cm D
- (8” x 8” x 5”)
- Weight: 4.54 kg (10 lb)
- Operating Temperature: ‐20°C to 40°C (‐4°F to 104°F)
- Storage Temperature: ‐40°C to 65°C (‐40°F to 149°F)
- Monitor Warranty: Two years
- Relay Contacts: 2 or 4 DPDT 10A @ 250 VAC Res.
- Alarm Thresholds: Set at Sensor Modules
- Indicators (per Zone):
- Red LED – Alarm
- Yellow LED – Warning
- Green LED
- LED On – Run
- LED Flashing – Fault
- LED Off – Off
- Recommended Mounting Height: 4‐5 ft. A.F.F.
- Alarms disabled during warm up
- System test switch
- User selectable:
- Activation delays, five minutes for Warning and/or Alarm set points
- Minimum Run Timer
- 95 dBa Audio alarm with Warning and/or Alarm set points
- Hinged door
- Optional latching relays with manual reset
- Optional enclosure key lock
- Available VFD Output Option
