Amel - Model 2559-2560 -Multipotentiostat Unit

SHARE

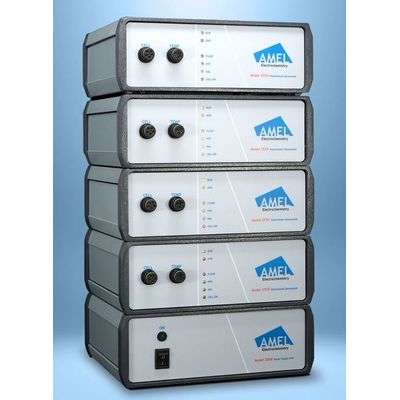

The portable potentiosat Model 2559, latest addition to AMEL series of potentiostats, has been designed to be used individually or transformed into a multipotentiostat. The power supply unit, Model 2560, is able to power up to eight 2559 & 2700 units simultaneously.

Most popular related searches
potentiostat
electrochemistry

All units are controlled by VA Peak and ZPulse softwares, each one independently. The idea behind this system is the possibility to quickly detach one unit from the multi-system and use it alone with a small, single unit, power supply which is always provided.

Counter Electrode

  • Voltage Output: ± 10V max
  • Current Output: ± 100mA max
  • Slew Rate: 0,01mV/s to 10V/s
  • Protection: Thermal, overload and short-circuit

Working Electrode

  • Current Measure: From 1nA to 100mA Full Scale in 9 ranges
  • Current Resolution: From 1pA at 1nA F.S. to 10μA at 100mA F.S.
  • Measuring Accuracy: < 5% of Full Scale in 1nA to 1μA ranges
  • < 0,25% of Full Scale in 10μA to 100mA ranges

Reference Electrode

  • Input Impedance: > 1TΩ
  • Input Capacitance: < 20pF (1m cable)
  • Biasing Current: < 10pA at 25°C
  • Common Mode Rejection: > 60dB full frequency response
  • Voltage Range: ± 10V max
