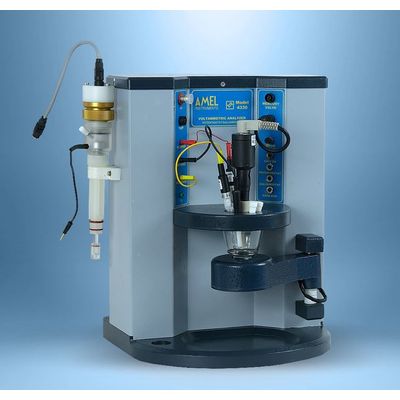

Amel - Model 4330 -Voltammetric Analyzer
The ultimate system for trace analysis which can be equipped with Hanging Drop Mercury Electrode, Rotating Disk Electrode or Static Electrodes. The range of available techniques and the complete set of working electrodes allow for the widest range of analysis.
The system has a built-in stand which can even accomodate PMMA cells for screen printed electrodes. Flow measurements are performed with dedicated cell. For the call of automation, the system can be integrated with Model 235 Automatic Dispenser, reducing the time spent in the addition of standards. VApeak softaware fully controls the unit.
Counter Electrode
- Voltage Output± 12V max
- Current Output± 12mA max
- Slew Rate1mV/s to 10V/s
- ProtectionThermal, overload and short-circuit
Working Electrode
- Current MeasureFrom 1nA to 10mA Full Scale in 8 ranges
- Current ResolutionFrom 1pA at 1nA Full Scale to 1μA at 10mA Full Scale
- Measuring Accuracy± 0,2% & 0,1% (conversion at Full Scale)
Reference Electrodes
- Input Impedance> 1TΩ
- Input Capacitance< 20pF (1m cable)
- Biasing Current< 2pA at 25°C
- Common Mode Rejection> 50dB full frequency response
- Voltage Range± 10V max
Polarization Capability
- Voltage± 4V max
- Current± 10mA max
- Voltage Resolution1mV
- Current Resolution1pA
- Accuracy± 0,2% & 0,1% (conversion at Full Scale)
Response Time
- Potensiostatic Rise Time10μs resistive load (1000Ω)
- Galvanostatic Rise Time25μs resistive load (1000Ω)
Meters and Interface
- A/D Converter16 BIT
- D/A Converter16 BIT
- Temperature Meter0 to +100°C with PT1000 probe (0,1°C resolution and ± 0,2°C accuracy)
- pH Meter-2,000 to +16,000pH (0,001pH resolution and ± 0,005pH accuracy)
- Sampling Interval200μs
Digital Interface
- ConnectionUSB with full instrument control (baud rate 57600 – N – 8 – 1)
- MemoryEEPROM 64kB – SRAM 32kB
- Digital BuretteModel 235 with 1000μL calibrated syringe (optional)
- Peristaltic Pump ControlStart/stop and direct/reverse flow
Cell Connections
- Working ElectrodeHanging Drop Mercury Electrode (110 x Ø6mm capillary - Ø0,1mm)
- Rotating Disk Electrode (100 to 5000rpm)
- Solid Electrode Tips
- Counter ElectrodePlatinum wire (Ø0,8 x 5mm) with 2mm ball ending
- Reference ElectrodeAg/AgCl (3M KCl electrolyte)
- Calomel (Sat. KCl electrolyte)
- StirrerMagnetic or overhead propeller (computer controlled)
Power Supply and Dimensions
- Voltage Mains115 or 230V AC ±10% 50/60Hz
- Power Consumption40VA max
- Dimensions (L x W x H)270 x 320 x 350mm
- Weight8kg
