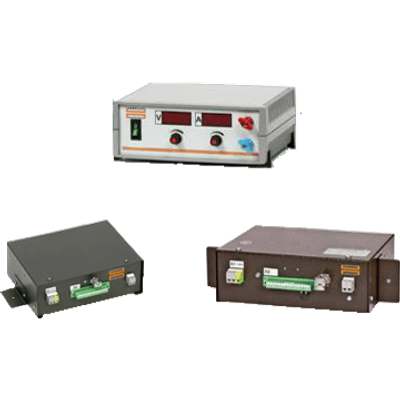

American Plating Power - Model MSA 0025 -Rectifier
The MSA 0025 Rectifiers leverage switch mode technology to deliver reliable DC currents with less than 3% ripple and superior control accuracy below 1%. This ensures high-quality performance and precision in applications where stable DC power is critical. The rectifiers are available as bench cases and feature air-cooled module/plug-in options, which are effective for diverse settings. Designed for demanding industrial and commercial environments, these rectifiers are engineered to maintain consistent operation around the clock, thereby minimizing downtime and maximizing efficiency. This reliability is crucial for operations that require steadfast power supply solutions.
Most popular related searches
Bench Case
- Mains Voltage : 1 x 110/230 V / 50/60 Hz
- Ripple : 1% over the total range
- Control Range : 0 – 100%
- Control : Current and voltage constant
- Cooling : Air-cooled
- Duty : 100%
- Efficiency : > 80% – 95% (According to Design)
- Dimensions (W/D/H) : 12″ x 10″ x 4.5″
- Weight : Approx. 12 lbs
Air-Cooled Module/Plug-In
- Interfaces :
- Rated/Real Values : 0 – 10 V / 0 – 10 V
- 0 – 20 mA / 0 – 20 mA
- 4 – 20 mA / 4 – 20 mA (optional)
- Field Bus (optional)
- Dimensions W x D x H : 14″ x 9.5″ x 4″
- Weight : Approx. 9 lbs
- Dimensions (W/D/H) : 12″ x 10″ x 4.5″
- Weight : Approx. 12 lbs
- Electronic adjustment
- High packaging density
- Parallel operation for increased power possible
- Individual interface
- Ah meter
- Timer
- Optional manual or remote operation
- Multi functions display
- Pulse operation
- Polarity switch
- Bath short circuit control
- Integrated isolation amplifier
- Interface for Profibus-DP, Interbus-S, and Modbus
- Parallel operation to increase total current
