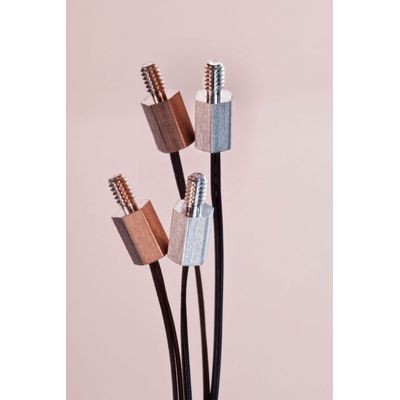

Ametherm - Model PANT Series -NTC Thermistors - Probe Assembly with Threaded Hex Nut
FromAmetherm
The NTC Thermistors - Probe Assembly with Threaded Hex Nut by Ametherm are crafted from a specially-formulated metal oxide ceramic material, known for its precision in temperature sensing. These thermistors are utilized in various applications for temperature sensing, compensation, and control. They are housed in diverse casings and leaded units, ensuring high performance in multiple environments. The thermistors are named under several specifications including PANT302395, PANT502395, PANT103395, and others, which represent variations suited for specific requirements. Since its establishment in 1994, Ametherm has been dedicated to providing reliable and effective inrush current limiting solutions through meticulous design, quality manufacturing, and customer support excellence.Most popular related searches
Ametherm NTC thermistors are manufactured from a specially-formulated metal oxide ceramic material that is extremely accurate in sensing temperature. Same high quality material is used in wide variety of housings and leaded parts for various applications such as:
- Temperature Sensing
- Temperature Detection
- Transformers
- Electric Motors
- Air Sensors
- HVAC
- Resistance at 25 ºC from 10 kΩ to
250 kΩ - Beta from 3,000 K to 4,500 K
- Dissipation constant of 3 mW/ºC
- Thermal time constant of from 8.0s to 40.0 s
- Max. power of 125 mW
- Operating Temperature Range -50ºC to 150ºC
