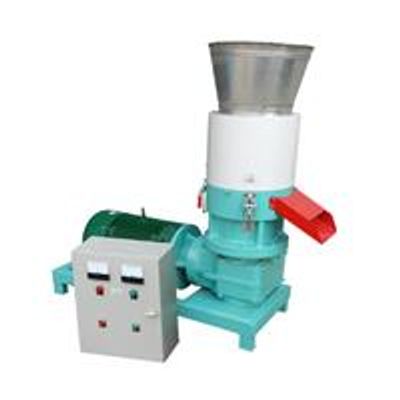

Amisy - Model PLM 300A -Electric Flat Die Pellet Mill

AMSPLM 300A flat die pellet mill can is of special pellet mill design with a running die mould and stationary rollers. The advantages of this design is low electricity consumption and efficient in making feed pellets. This portable feed pellet mill can process corn, bean dregs, straw, grass and rice hull powder into granulated pellets. You just put the pellet mill on the flat ground and then put the feedstock into feeding mouth, then the material will be pressed into the die hole by the friction between die mould and rollers. Usually the gap between die and rollers is 0.1-0.3mm for making feed pellets. The feed pellet length can be adjusted by the cutting knife. You can replace flat die to making feed pellets with different diameters of die holes. After the pellet die has been used for a period, you can turn oven it and continue to work.

★ Pelletizing rate is more than 95%.
★ Pellets are of uniform size, slippery surface.
★ Feed pellets are cooked and digestive.Pellets produced are of good intensity and shape, which is convenient to store and not easy to deteriorate.

1. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
2. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.
3. Simple operation, easy maintenance and perfect technical design with less labor.
4. Small and light weight which make it widely used in home, small farm.
5. Geat for processing soft wood pellets and feed pellets
