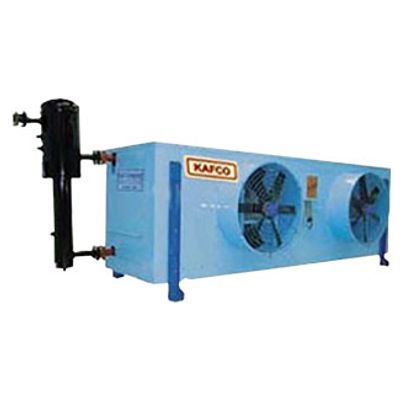

Neer - Model KF -Ammonia Air Handling Unit
The air cooling unit is critical to the functioning of the machine in cold storage units and certain other implementations. When contrasted to bunker coils or diffusers, it delivers a significantly greater rate of ammonia gas evaporation. Stainless steel, galvanised tubes, and copper pipes are used in air cooling systems.
Ammonia Air Handling Units - Bringing forth Excellence
The ammonia air handling units are important for any facility that uses ammonia as a refrigerant. They are flexible enough to be placed on the exterior of a building or in the air handling system of the building. Ammonia air handling unit manufacturers cater to perfectly engineered products for refrigeration needs. They are used to prevent any kind of contamination while using the magnificent properties of ammonia. It also involves the use of a portable ammonia sensor in its unit which aids in this purpose. The ammonia air handling unit suppliers and exporters also ensure they are compliant with the existing government regulations and safe for use. It also comes with a leak-proof design and is very temperature sensitive. This quality makes it useful in a lot of industrial applications. The ammonia air handling unit provides utility, and functionality and is a maintenance-free unit with total energy savings. This compact and latest technology is the latest in trend and is supplied with premium quality and a competitive pricing structure. They work to their full capacity and deliver the best with a difference. The ammonia being most natural with excellent low-temperature solutions is suitable for all types of uses and applications.
- Hot-dipped galvanised pipes and helical fins are used to make the cooling coil.
- Tubes are positioned in the line of air movement to maximise air resistance and hear transmission efficiency.
- Suction and overfeed fluid attachments are equipped with 150-pound flanges, as well as accompanying flanges and isolation packages.
- The flange is designed with tongue and grooves as normal; an elevated face is possible. The drainage pan is made of durable gauge galvanised steel and is included with the machine.
- All pans have a flat surface and are slanted from edge to edge to provide full and quick disposal.
- The fan motors are three phase, ball bearing, 1440 RPM, and include inbuilt thermal overload protection. There is a supply of low temperature lubricant.
- Axial propeller fans with direct drive are made from durable materials.
