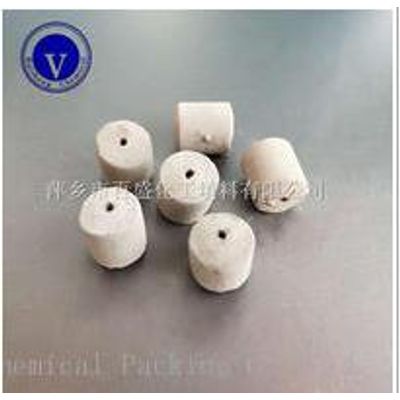

Baisheng - Model AD-946 -Ammonia Decomposition Catalyst
AD-946 Ammonia Decomposition Catalyst is developed by Baisheng and Chemical Physics Research institute in Dalian of Chinese Academy of Sciences. This product can directly replace Germany G-117 catalyst with unique performance of great catalystic activity, high mechanical strength, and excellent thermal and coking resistance. It is used in the ammonia decomposing furnace to decompose the NH 3 and HCN etc into N 2, H 2 and CO 2 , and so as to effectively purify the coke-oven gas for the sake of environmental protection and prevent the equipment from corrosion.
Most popular related searches
catalyst support
ammonia catalyst
bulk density
environmental protection system
furnace
protective equipment
Technical Feature
- Chemical reaction NH3 — 0.5N2 + 1.5H2 2HCN +4H 2 0 - N 2 +5H 2 + 2CO 2
Technical Indexes Type- Item
- AD-946 AD-946 A AD-946 B
- Color Grey and Black
- Shape Cylinder Rasching Ring Honeycomb
- Size, mm 018^20 018*20*5 018*20
- Ni Content,% s6 26 26
- Bulk density, g/ml 1.4-1.6 1.3-1.5 1.2-1.5
- Surface area.m 2/g 1-3 2-4 2-5
- Crushing strength.N s1000 s1000 21100
- Thermal resistance, °C s1350 *1350 *1350
Normal Operating Conditions
- Operating Temperature 1000-1200°C Maximum Teperature 1350°C
- Pressure 0.1-1MPa
- Space Velocity 1000-3000 h-1
