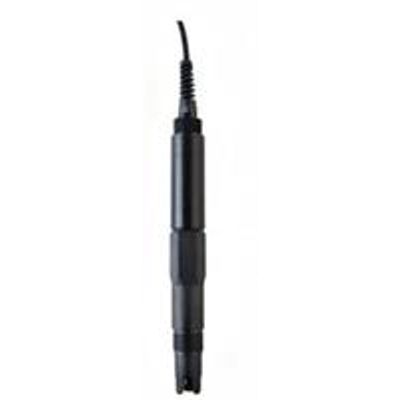

Chemins - Model NHN-202 -Ammonium Nitrogen in Water
With automatic temperature compensation. Output standard Rs485 (Modbus/RTU protocol) digital signal or 4~20mA signal.The Rs485 signal is easily connected to third-party devices such as PLCs, DCS, industrial control computers, general-purpose controllers, paperless recording instruments or touch screens. Parameter settings are more convenient and faster. The calibration function provides a quick and easy way to calibrate. Real-time data transmission allows you to get timely and accurate data on monitoring water bodies.
Most popular related searches
water body monitoring
drinking water source
marine water
water source
water body
water quality
nitrogen monitoring
environmental monitoring
water treatment
drinking water
Various water treatments (river/lake/potable water source/groundwater/marine water quality, etc.), aquaculture, environmental monitoring, CIP and other industries.
- Range 0～100mg/L or 0～1000mg/L
- Resolving power 0.1mg/L
- Accuracy ±5%F.S.
- Working temperature 0～40℃
- Working pressure ＜0.1MPa
- PH range of medium 4-10
- Temperature compensation Automatic temperature compensation(PT100)
- Power supply 12～24VDC ±10%
- Signal output RS485(Modbus/RTU)
- Liquid material PVC or POM
- Installation method 3/4" NPT screw thread, immersion mounting
- Cable length 5m, other lengths can be customized
- Power <0.5W
- Calibration method Two point calibration
- Protection level IP68
