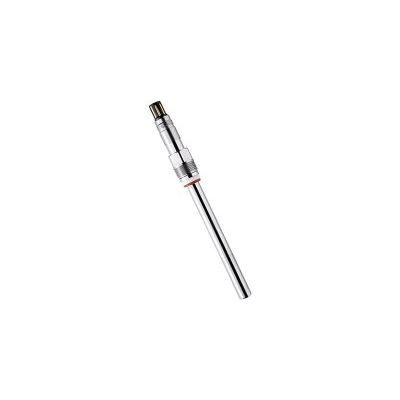

InPro - Model 6800 G -Amperometric Oxygen Sensor

Specifications - InPro 6800 G Amperometric Oxygen Sensor

Accuracy: ≤ ± [1% +0.1 Vol-%]
Measuring pressure resistance: 0.2 to 9 bar (2.9 to 130 psi absolute)
Operating range: 0.1 Vol-% O2 to 100 Vol-% O2
90% response time at 25°C (77°F): ≤ 20 s (N2®15 Vol-% O2)
Measuring principle: Polarographic Clark electrode
Sensor body: 316L stainless steel or C22 (titanium on request)
Membrane material: PTFE/Silicone (reinforced with steel mesh)
O-ring material: Silicone or Kalrez®
Mechanical pressure resistance: Maximum 12 bar (174 psi absolute)
Certificates: Quality certificate, EHEDG,FDA/USP Class VI, 3.1, N5/Ra16,ATEX: EEx II 1/2 GD IIC T6/T5/T4/T3,FM: IS Cl. I,II, III, Div1, GR ABCDEFG/T6
KALREZ is a registered trademark of E. I. Du Pont de Nemours and Company Corporation

Features and Benefits

In-situ measurement

Measurements are fast and are performed directly in the process stream.

Accurate

Insensitive to moisture and dust, the membrane – covered sensing element is permeable to oxygen, not liquids.

Reduced service time

Thanks to the easy-to-replace membrane body and quick-disconnect interior body.

Long sensor lifetime

Durable and rugged sensor design for increased resistance to harsh environments.

Installation in hazardous zones

ATEX certificate: II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X; FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta= 60 °C - 53 800 002; Entity.
