Shovoy - Model SHAC10 -Amphibious Carrier Buggy
Shovoy SHAC10 amphibious carrier buggy is a medium swamp cargo carrier among all our range. The machine is with original Cummins engine made in USA. The deck size is 8.5×6.0 meters at a height of 2.1 meters. SHAC10 amphibious carrier buggy is equipped a telescopic crane with max. lifting capacity of 10 ton. There is also a winch attached in the front of the machine near the cabin.
Reliable Power Supply

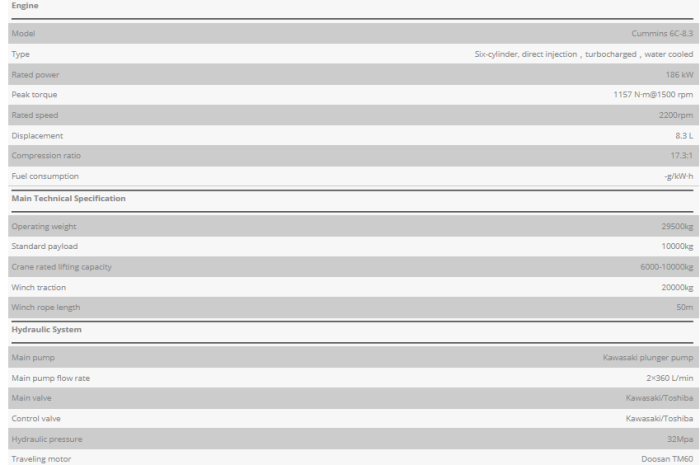

The engine we are applying on amphibious carrier buggy is Originally from Cummins. It is a turbocharged 6-cylinder diesel engine with mechanical injection fuel pump. After years of the market test in West Africa, it is proved to be the best choice for amphibious equipment which gives very little problem.
Top Grade Hydraulic Undercarriage
Chancos engineers use superior material and workmanship for undercarriage construction, weathering steel plate with high tensile strength and good corrosion resistant is used in the fabrication of pontoons. The weathering steel sheet we are using come with a 32.4% higher yield strength and 14.6% higher tensile strength over ASTM A242 or A606 type 4 steel ( used to be referred as Cor-Ten A and Cor-Ten B). It also has 6-8 times the atmospheric corrosion resistance and 6-10 times the paint adhesion than Chinese Q345B steel sheet. The outline shape of Shovoy amphibious hydraulic undercarriage takes reference from ocean vessel, which enables the machine to move in swamp area or water with lower drag, resulting to more economical running cost as well as longer service life.
