- Model AT-1000 - Advanced Wire Tracer

From

0

The Amprobe AT-1000 advanced wire tracer is Amprobe's first tier advanced circuit tracer for basic applications where accuracy and routine troubleshooting are important. The AT-1000 can trace energized lines up to 300 V AC or V DC and unenergized and open conductors. It can identify breakers and fuses without powering down the lines. Amprobe AT-1000 tracers can also locate shorts and identify wires in a bundle, as well as identify control, alarm and telephone system wiring. The AT-1000 traces coaxial cable shield. The receiver range is 1 to 3 feet from the cable being traced.

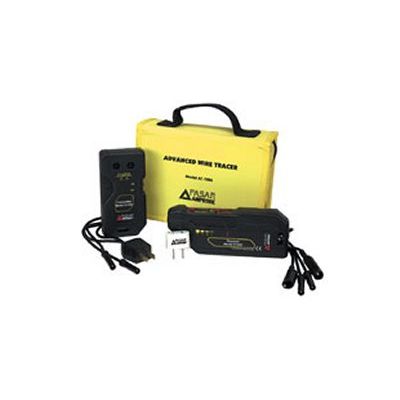

The Amprobe AT-1000 ships complete with:

  • Amprobe R1000 reciever
  • Amprobe X1000 transmitter
  • Carrying case

  • Part number AT-1000
  • Manufactured by Amprobe
  • Trace energized lines up to 300 VAC or VDC
  • Trace unenergized & open conductors
  • Identifies breakers and fuses without powering down
  • Locates shorts
  • Identifies wires in a bundle
  • Identifies control, alarm and telephone system wiring
  • Traces coaxial cable shield
  • Receiver range 1 to 3 feet from cable being traced
