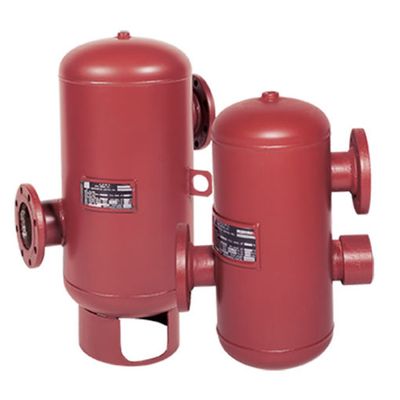

Amtrol - Model ASME -Air Separator

• Eliminates 99% of Entrained Air.
• Removable, 304 Stainless Steel Strainer Models Available.
• Ring Base Standard on 5-AS(L) through 24-AS(L) Models.
• Working Pressures Offered: 125, 150, 175, 250 and 300 PSIG.
• Max. Operating Temperature: 350º F.
• 3-Year Limited Warranty.

Construction

• Shell: ASME Approved Steel
• Flanges: ASME 150 lb.
• Removable Strainer: 304 Stainless Steel
• Finish: Red Oxide Primer

Performance

• Max. Operating Temperature: 350° F (177° C)
• Max. Working Pressure: 125 PSIG (8.6 bar) through 300 PSIG (21 bar)
• Warranty: 3-Year Limited

Application

• For use in closed, heating and chilled water systems.
• Creates a low velocity vortex that separates and removes entrained air from the circulating fluid.
• Prevents blocked terminal units, inefficient pump operation and costly equipment corrosion.
• Meets all ASME Section VIII, Division 1 code standards.
