Climatronics - Analog Barometric Pressure Sensor

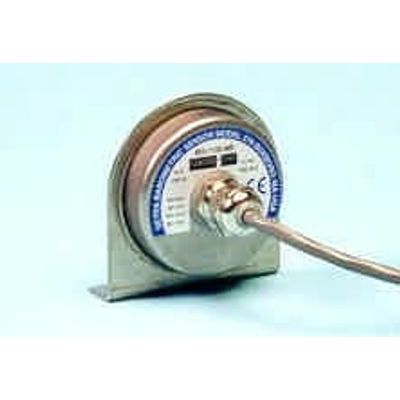

Climatronics` analog barometric pressure sensor, P/N 102270 is designed for applications, which require accurate pressure measurements at a modest cost. It is a stable transducer based upon a proven design, yielding a linear and repeatable sensor with low hysteresis. The high level output signal is directly useable without additional signal conditioning.
This sensor features the use of a built-in Application Specific Integrated Circuit (ASIC), which works hand-in-hand with a capacitive transducer to achieve long-term stability and high accuracy. The analog pressure sensor`s small size and wide operating temperature range further enhance its compatibility with all of Climatronics` signal conditioning and data acquisition products.
Two measurement ranges (600 - 1100 hPa and 800 – 1100 hPa) and two accuracy specifications (0.1% and 0.25%) are available.
All versions of the P/N 102270 sensor are also available mounted in a small, vented environmental enclosure (NEMA-4X) for applications where another suitable shelter is not available. This assembly is provided under P/N 102272. Specifications for P/N 102270 and P/N 102272 are the same. The companion cable assembly for P/N 102272 is P/N101797-XX.
- Inexpensive
- Excellent Long-Term Stability
- Wide Operating Temperature
- Analog Voltage Output
- Compact Size
Accuracy:
- G1 & -G3 = <±0.1% FS RSS of non-linearity, hysteresis and non-repeatability
- G0 & -G2 = <±0.25% FS RSS of non-linearity, hysteresis and non-repeatability
- Resolution: Infinite, limited only by output noise level (0.0005% FS)
- Operating Range:
- G0 & -G1 = 600 to 1,100hPa (17.72 to 32.48" of Hg)
- G2 & -G3 = 800 to 1,100hPa (23.62 to 32.48" of Hg)
- Storage Temperature Range: -65° to 250°F (-55° to 120°C)
- Over Pressure: 30 psia
- Operating Temperature Range: 0° to +175°F (-20° to +80°C)
- Time Constant: Less than 10 milliseconds to reach 90% final output with step function pressure input
- Long Term Stability: ±0.25% FS over 6 months @ 70°F
Electrical
- Excitation Power: 12V dc standard, 20 to 32V dc or 5V dc optional <0.2 watts
- Signal Output: 0.1 to 5.1V dc (0.5V to 4.5V dc with 5V dc power)
- Output Impedance: <5 Ohms
- Output Noise: <200 microvolts RMS (0 to 100Hz)
