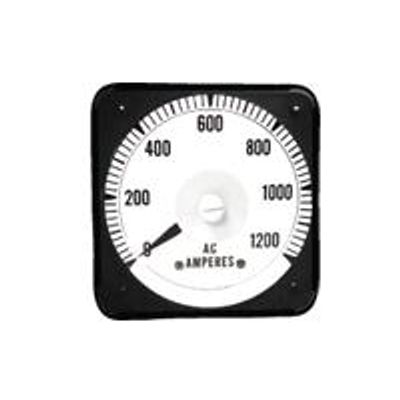

Hoyt - Model LS-110 & LS-80 Series -Analog Meter
Hoyt`s LS-series switchboard instruments provide high visibility instrument readings for all AC parameters. The scale of each instrument in the series features high visibility markings and a 250-degree full-scale deflection.
Most popular related searches
MODELS AND SIZES:
- LS-80 - 3-1/2" Switchboard Panel Meter
- LS-110 - 4-1/2" Switchboard Panel Meter
MODELS AND SIZES:
- The LS-110 is 4.5" Square.
- The LS-80 is 3.25" Square.
- All AC moving coil rectifier ammeters and voltmeter are ±1%.
- DC Moving coil ammeters and voltmeters ±1%.
- Frequency meters ±0.15Hz (50Hz & 60Hz), and all power meters are ±1%.
- All AC & DC voltmeters - 50% momentary/20% prolonged.
- AC & DC ammeters - 50% momentary/20% prolonged.
- Frequency meters - 20% maximum; and power meters - 20% maximum. All ammeters and power meters
- Meters are ANSI C39.1 *Some available options include custom artwork, colored dials, traceable calibration, custom logos, panel gaskets, and anti-glare window. Range specifiacations available upon request.
