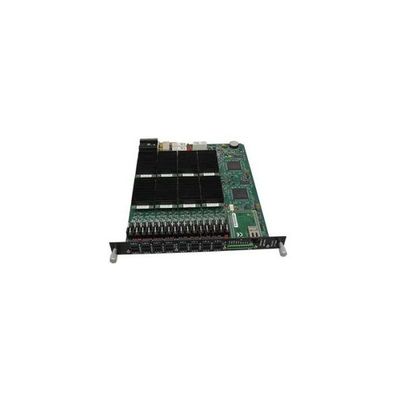

Thermotron - Analog Voltage Input/Output (AVIO) Instrument

SHARE

The AVIO (Analog Voltage Input/Output) instrument has the functionality to operate as a DVM, oscilloscope, and signal generator. 16 channels for configuration as input or output, on-board memory, high speed feedback loop protects I/O from damaging electrical transients.

Most popular related searches
4-20ma signal generator
remote sensing
analog converter
oscilloscope
input output card
ethernet interface module
multimeter

The AVIO (Analog Voltage Input/Output) Instrument features 16 channels, each configurable for either input or output.

  • One AVIO card can take the place of many instruments (such as multimeters, oscilloscopes, frequency counters, and generators)
  • Each channel can supply or monitor time varying AC or DC signals (sine, triangle, square waves, and more)
  • Other cards similar to AVIO only have one Analog to Digital Converter for all channels on the card. AVIO is a cost effective and faster solution because every channel has its own dedicated Analog to Digital Converter. This allows a faster sample rate and independent channels (no muxing).
  • All voltage readings are true RMS regardless of wave shape.
  • Input sample rates up to 1.1 MS/s (mega samples per second) and output rates up to 1 MS/s
  • Ability to drive currents up to 450 mA per channel
  • Output channels monitor current.
  • Input channels monitor frequency and voltage.
  • Inputs can withstand voltages between +/- 170 volts (therefore 120-volt outlets will not damage the module)
  • Ethernet Interface (built-in web server)
  • Included TestTrak software allows ease of use without programming
Output Mode Specifications
  • Number of Channels: 16 (user configurable to be either input or output)
  • Maximum Frequency: 1 MS/s
  • Output Voltage Range: +10/-10 Volts
  • Output Mode Memory Depth: 8K deep memory per channel for programmable waveforms
  • Internal and External Clocking: Yes (External 12 KHz max)
  • Output Protection: Over Current, Over Voltage, Over Temperature
  • Hardware Failure Limit Detection: High/Low voltage, current, and frequency limits (user configurable)
  • External Enable Trigger: Yes (2 Triggers shared with external clock)
  • Accuracy: 12 Bit (5.86 mV/bit
  • Output Current/Channel (Max): +/-450 mA (external power required for high channel count applications)
  • Slew Rate: 88.49 V/us
  • Output Channel Impedance: ~3.00 Ohm (series)
  • Remote Sense: Yes
Input Mode Specifications
  • Number of Channels: Up to 16 (shared with output mode) Up to 8 (in differential mode)
  • Maximum Sample Rate: 1.1 MS/s (0.909 uS)
  • Input Voltage Range: +/-1.00; +/-12.00; +/-170 Volts
  • Accuracy: 12 Bit (0.488mV; 5.86mV; 87.4mV)
  • Input Protection: +/- 170V max
  • Channel Impedance: ~36KOhm to GND
  • Frequency Range: 20Hz – 100 KHz
