Etatron - Model DLX MA/AD -Analogue Dosing Pump
Analogue dosing pump with manual ow rate regulation. The high reliability and the price competitiveness make the DLX series the best proposal in dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke length control, which enables - by a dial - to adjust the dosing volume between 20-100%. The DLX MA/AD model consists of series of metering pumps enabling manual regulation by knob.
Most popular related searches
dosing pump
solenoid driven dosing pump
ceramic ball
level sensor
dosing system
metering pump
solenoid dosing pump
head pump
solenoid pump
acid protection
- Anti-acid plastic casing
- IP65 protection degree

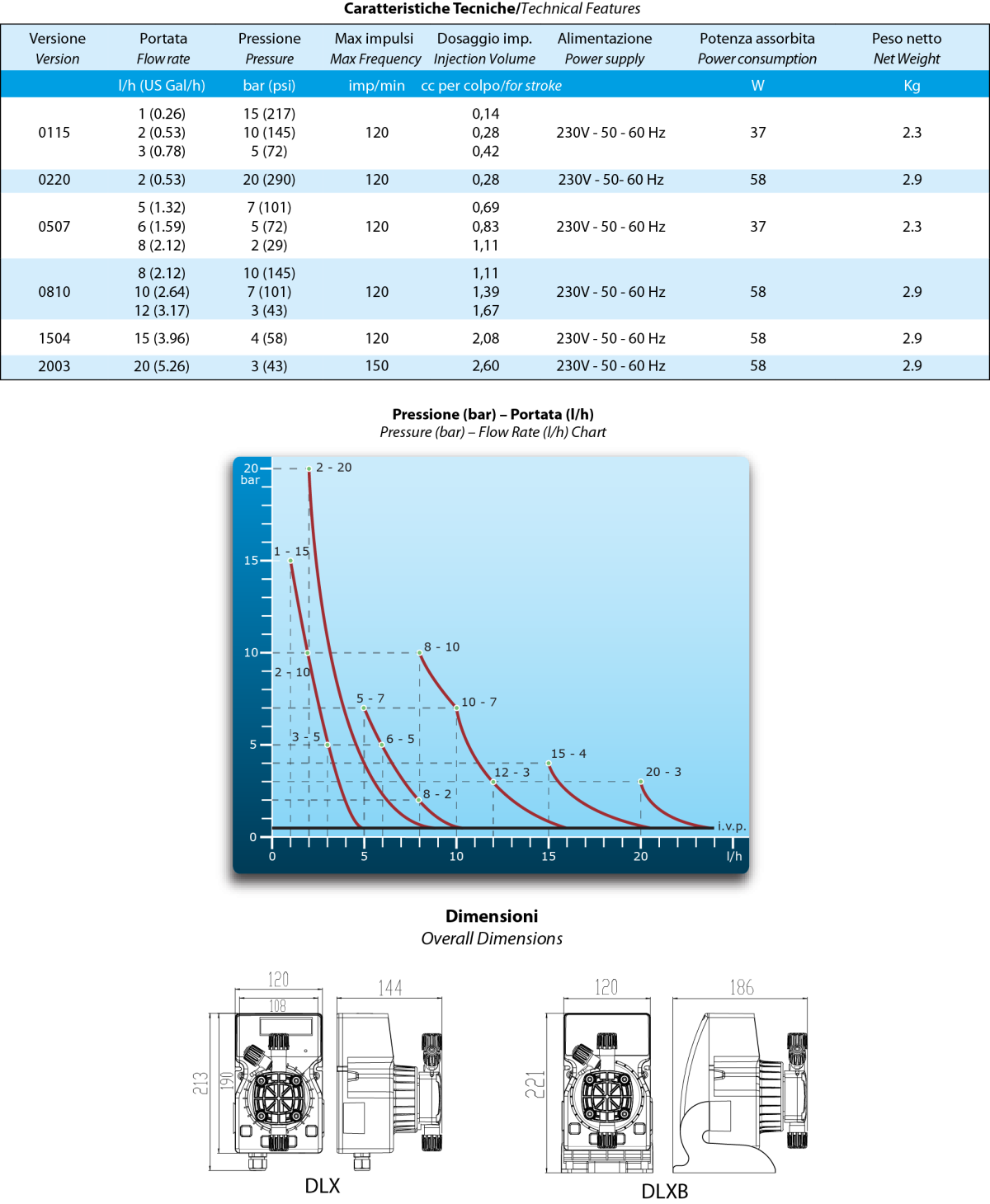

- Up to 20 l/h and 20 bar
- Wall (DLX) and Foot mounted (DLXB):
- Standard pump head: PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
- Power Supply: 220-240V - 120V (on request)
- Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
- CE (standard) and CSA certied (on request)
- Double Manual regulation by knob
- Selectable regulation range: 0-20% or 0-100%
- Level sensor input (on request)
*different configurations available upon request
