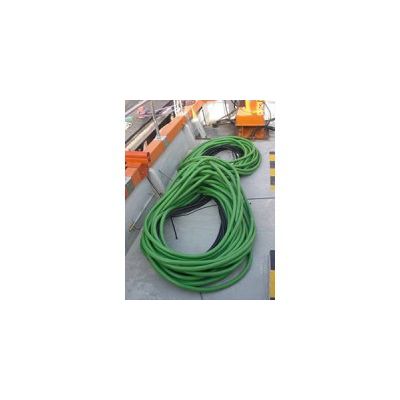

Geometrics - Model MircoEel -Analogue Seismic Streamer

Signals from the streamer are digitised by the renowned Geometrics Geode seismograph. The intuitive data acquisition software can be run on a standard Laptop PC. All components of the recording system can be run from 12V batteries permitting the system to be operated from any vessel.

The system is light weight and can be deployed by hand from a small vessel. The MicroEel is ideal for geological engineering projects in shallow water.

MircoEelThe MicroEel opens the door to affordable multichannel seismic data acquisition.

• Available in 1 to 24 channel configurations
• State-of-the-art, low noise, high sensitivity polymer hydrophones provide stable, accurate response
• 31cm bend radius winds easily on small winches
• Extremely lightweight, deploys easily by hand
• Proprietary floatation survives abrasive environments, proven performance in polar regions
• 31 mm diameter design makes for easy shipping, deployment and retrieval
• Unique design isolates vibration, bulge waves and suppresses ship and towing related noise

Technical Specifications

Hydrophones
Sensor Type: Proprietary Polymer
Frequency Response: 10Hz to 10,000Hz ±3.0dB
Sensitivity: -196dB re 1 Volt per 1 µPa
Sensitivity with Depth: <-70dB re 1 V/G

Active Section
Floatation Material: Polyurethane based
Channels: Maximum of 24
Group Interval: 1-5m
Hydrophones per Group: 1-10, customer defined

Lead-In Cable
Lead-In Cable Length: Up to 200m
Cable Type: Multi-conductor with Kevlar centre stress core.
Working Load: 273kg
