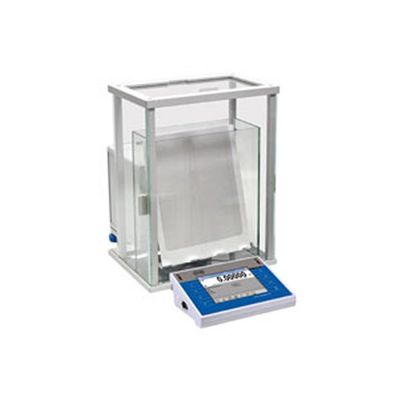

RADWAG - Model XA 110.4Y.F -Analytical Balance

Faster measurement with the new CPU

4Y balances feature Dual Core 2 x 1 GB processor which delivers noticeable performance improvements including faster operation and shorter stabilization time retaining high repeatability values.

16 GB RAM – more data management possibilities

16 GB RAM offers possibility of recording data in a form of complex reports. Time and statistic data diagrams on series of weighments are another useful option.

The best possible repeatability and USP regulations conformity

The best weighing accuracy and repeatability – with sd ≤ 1d combined with USP regulations conformity (Section 41 and 1251) make 4Y balances a new standard for mass measurement quality.

Ergonomics and safety

Wireless communication between balance terminal and a weighing unit make it possible to comfortably operate 4Y series balances in laminar air flow cabinets and fume cupboards.

Remote control operation

Wireless Connection module offers wireless transfer of data recorded by 4Y balance to any portable device powered by iOS or Android systems using special applications intended for data management.

Data safety

Every single 4Y balance features ALIBI memory designed to provide protection and automatic recording of your measurements. Options such as data preview, copying and archiving are also available to users.

• Electronic level indicator Functions:
• ALARM function
• graphic level indicator
• programmable acceptable tilts
• Data exchange through USB storage devices
• update balance software
• export weighing data
• export/import databases
• export/import balance settings
• exchange data between balances
• Infrared proximity sensors
• Optional functions:
• PRINT function
• TARE function
• sensor`s sensitivity adjustment
• Interfaces
• Ethernet
• 2×USB
• 2×RS 232
• 4 in / 4 out
• WiFi 2,4GHz b,g,n

• Maximum capacity [Max] : 110 g
• Minimum load : 1 mg
• Readability [d] : 0.01 mg
• Tare range : -110 mg
• Standard repeatability [5% Max] : 0.007
• Standard repeatability [Max] : 0.02
• Standard minimum weight (USP) : 14 mg
• Standard minimum weight (U=1%, k=2) : 1.4 mg
• Permissible repeatability [5% Max] : 0.01
• Permissible repeatability [Max] : 0.03
• Linearity : ±0.06 mg
• Eccentric load deviation : 0.06 mg
• Stabilization time : 5 s (30 s for filters)
• Adjustment : internal (automatic)
• OIML Class : I
• Display : 5.7” resistive colour touchscreen
• Communication interface : 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
• Power supply : 100 ÷ 240 V AC 50 / 60 Hz
• Operating temperature : +10 ÷ +50 °C
• Weighing pan dimensions : 210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)
• Packaging dimensions : 870×510×685 mm
• Net weight : 12.7 kg
• Gross weight : 25 kg
