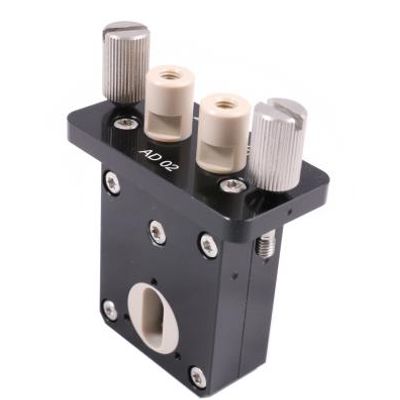

ECOM spol. s r.o. - Model AD02 -Analytical Cell
This analytical cell designed for use in ECDA detector series. Cell internal volume is 1µl and its optical path is 2 mm.
Most popular related searches
- l=2mm; tubing with OD 1/16” and thread UNF10-32
- For ECDA2800. Optical path length 2 mm.
- Volume/optical path length 1 µl / 2 mm
- Material PEEK, stainless steel, fused silica
- Outer diameter of capillary 1/16”
- Casing dimensions 54 x 28 x 77 mm
- Maximal flow rate 10 ml/min
- Connecting thread UNF10-32
- Dimensions W x H x D 54 x 28 x 77 mm
- Maximum operating pressure 5 MPa
- Internal volume (exchanger/capillaries) 1µl
- Weight 108 g
