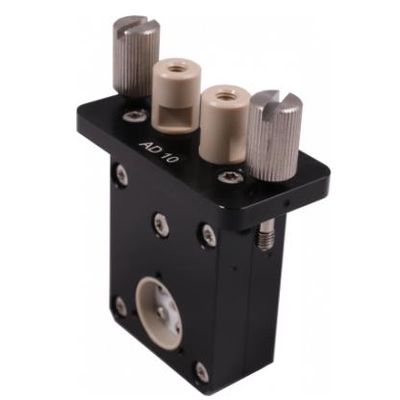

ECOM spol. s r.o. - Model AD10 -Analytical Cell

FromECOM spol. s r.o.

SHARE

This analytical cell designed for use in ECDA detector series. Cell internal volume is 16µl and its optical path is 10mm.

Most popular related searches

l=10mm; tubing with OD 1/16” and thread UNF10-32
For ECDA2800. Optical path length 10 mm.

Volume/optical path length 16 µl / 10 mm
Material PEEK, stainless steel, fused silica
Outer diameter of capillary 1/16”
Casing dimensions 54 x 28 x 77 mm
Maximal flow rate 10 ml/min
Connecting thread UNF10-32
Maximum operating pressure 5 MPa
Internal volume (exchanger/capillaries) 16µl
Weight 108 g
