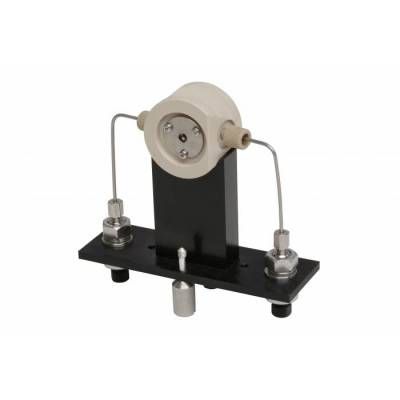

ECOM spol. s r.o. - Model HPLC10L PEEK -Analytical Cell in Bracket
Analytical cell in bracket HPLC09 PEEK has a unique design with an optical length of 5 mm. It is designed for analytical applications and it is possible to connect it using tubing with OD 1/16" and thread UNF 10-32. Internal volume of preparative cell is 8 µl. Maximum flow rate is 50 ml/min. If you are looking for a different cells parameters and materials , see our website or contact us. We are keen to design cell according your needs.
Most popular related searches
- l=5 mm; tubing with OD 1/16" and thread UNF 10-32
- For detectors TOY18DAD-H, TOY18DAD-L, TOY14DAD, and FLASH14DAD
- Volume/optical path length 8 µl/5 mm
- Wetted materials PEEK, quartz, FEP
- Body material PEEK
- Maximal flow rate 50 ml/min
- Tubing OD diameter 1/16"
- Connecting thread UNF 10-32
- Maximum operating pressure 2 MPa (290 psi)
