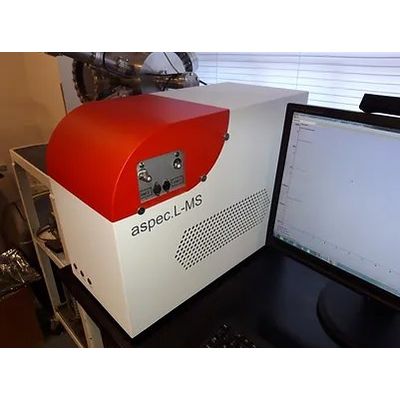

AnaSpec - Model L-MS -Compact Quadrupole Mass Spectrometer
For multi-component gas and dissolved gas/liquid phase analysis. This compact, robust designed, Laboratory bench-top Mass Spectrometer instrument incorporates all the latest Quadrupole and vacuum pumping technology housed in a robust case weighing less than 35kg. Its unique design allows the user to purchase one instrument model and select and connect any one of a number of sample interface systems to match the application. The powerful analytical software allows data to be quickly collected and either displayed as a full mass spectra (showing all gas species present within a process) or quickly configured to measure specific gas components of interest and data log in real time. Both absolute, quantative (%, ppm) data as well as qualitative data may be measured with this instrument.
Catalyst Research
Chemical reaction work
Pure Gas quality checking
Reactor process work
Pin-point leak detection
VOC analysis
Residual Gas Analysis
Medical gas transitions
Environmental work
Fermentation
Semiconductor industry
Combustion process analysis
TGA-MS instrument combination
Contaminated land and water
Vacuum process work
Furnace reactions and monitoring
General off gas reactions
Abatement and Filter testing
Below are typical, well proven, gas components measured by the aspec L-MS instrument. Up to maximum of 64 different gas species may be selected in one analysis method. The LDL,s shown below may vary with instrument configuration and overall gas composition
- Air cooled. Robust enclosure, approx: 630 x 450 x 300mm. <35kg
- Mains input voltage: 90- 250vac. 50/60 Hz. <3A. (500watts)
- 70-300l/sec Turbo Molecular Drag pump
- Chemical resistant diaphragm /sample pump
- Automated vacuum system control with integral full range vacuum gauge.
- ¼” swagelock.st/steel Multi application sample connection port
- Built in I/O: 4 x analogue o/p, 2 x analogue inputs, 2 x digital ports
