Wuxi BEWIS Sensing Technology LLC

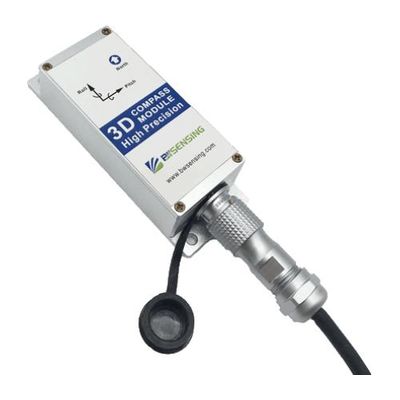

Bwsensing - Model BMR3000 -Angle Compensation 3D Compass
The BMR3000 can apply to high heading accuracy request ,0.2° heading accuracy
The replacement of HMR3000
Heading Accuracy:0.2° (RMS,Horizontal use )
Pitch Accuracy:0.1º(RMS)
Roll Accuracy:0.1º(RMS)
Voltage:9-35V DC
Output Mode:RS232/RS485/TTL Optional
Dimension: L107 x W38 x H25 mm
Protection Level: IP67
- Heading Accuracy
- Measuring range
- MTBF
- Resolution
- Broad temperature range
- Protection class
