China Topper Control Valves Manufacturer Co., Ltd.

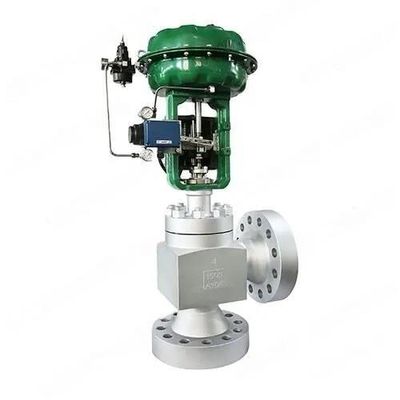

Topper - Model IEC 60534-2006 -1/2-12 IN, 150-2500 LB -Angle Control Valve
Our angle control valve, compliant with IEC 60534-2006 standards, offers superior performance and reliability. Designed with a single-seated, cage-guided mechanism, it ensures precise flow control and minimal leakage. Constructed from durable carbon steel, this valve is built to withstand harsh conditions and ensure longevity. Available in sizes from 1/2 to 12 inches and pressure ratings from Class 150 to 2500 LB, it suits a wide range of applications. The flanged design allows for easy installation and secure connections. Choose our angle control valve for robust construction, reliable performance, and adherence to international quality standards.
Most popular related searches
- Product Name: Angle Control Valve
- Design & Manufacture Standard: IEC 60534-2006
- Test Standard: IEC 60534-4
- Size Range: 1/2 Inch - 12 Inch, DN15-DN300
- Pressure Rating: Class 150 LB - 2500 LB, PN16-PN420
- Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
- End Connection: Flanged (RF, RTJ), Butt Weld, Socket Weld.
- Working Temperature: 196°C to 550°C
- Seat Leakage: ANSI ?(0.01%) or ?(bubble-tight)
- Bonnet Type: Standard, Fin-Extension, Long-Extension
