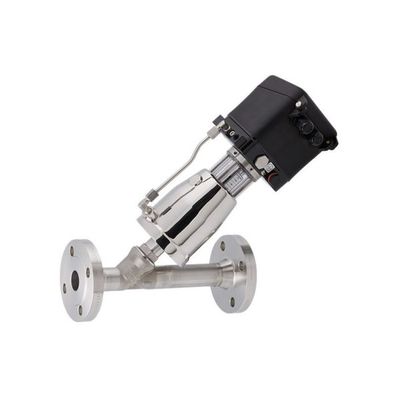

Schubert & Salzer - Model 7036 -Angle Seat Control Valve
Pneumatic control valve with angle seat design. The angle seat design offers a high flow capacity, the flange connection an easy installation. The integrated digital or analogue positioner is coming along with a very compact design. All wetted parts are made from stainless steel.
Most popular related searches
Material
- Body: Stainless steel 1.4408
- Actuators: Brass, stainless steel or fibre enforced plastic
Connection
- Flange acc. to DIN EN 1092-1
- Flange acc. to ANSI #150
Positioner
- Digital positioner type 8049
- Electro-pneumatic positioner type 8047
- Pneumatic positioner
- Positioner with integrated process controller
Application
- Gases, vapours, liquids
- Media temperature:
- -30 °C to +200 °C
Accessories
- Inductive limit switches
